Bosch VideoJet X SN encoder is a high-performance member of the CCTV video encoder family, supporting MPEG-4 video transmission at up to 25/30 frames per second. It features bi-directional audio communication and flexible recording options.

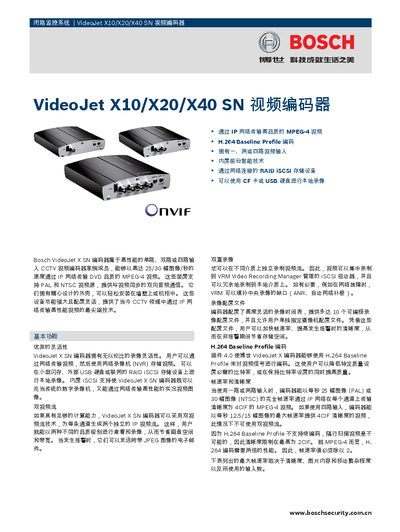

This manual describes the Bosch VideoJet X10/X20/X40 SN video encoder, a high‑performance CCTV encoder that supports PAL and NTSC sources and transmits MPEG‑4 or H.264 video over IP. It details flexible recording options, dual‑stream capability, and built‑in video analytics such as motion detection.
The document also covers security measures (AES‑128 encryption, HTTPS, 802.1x authentication), installation connectors, power requirements, mechanical dimensions, and ordering information for accessories and software licenses. This manual is written in Chinese.
| Video inputs | 1, 2 or 4 channels |
|---|---|
| PAL frame rate | 25 fps |
| Dimensions (W×H×D) | 33 mm × 142 mm × 178 mm |
| Network interface | 100BASE‑T Ethernet |
It supports one, two, or four video inputs depending on the model.
Yes, it can record to a CF card, USB hard drive, or network RAID iSCSI storage.
