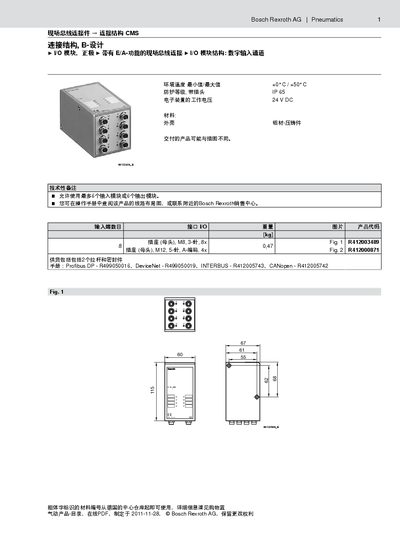

This Bosch Rexroth datasheet details the CMS connection structure for the B‑Design I/O module with E/A function, including environmental range, protection…
The document describes the CMS connection structure for the B‑Design I/O module with E/A function, intended for use in pneumatic field‑bus applications such as Profibus DP, DeviceNet, INTERBUS and CANopen. It lists part numbers, connector types and references to related operation manuals.
Key technical data include the operating temperature range, IP65 protection rating, 24 V DC supply voltage, aluminum die‑cast housing, and the ability to connect up to six input or six output modules in a system.
| Operating Temperature Range | +0°C to +50°C |
|---|---|
| Protection Rating | IP65 |
| Working Voltage | 24 V DC |
| Housing Material | Aluminum die‑cast |
| Connector Type | M8 3‑pin |
| Maximum Input/Output Modules | 6 input or 6 output modules |
The module operates from +0 °C up to +50 °C.
It has an IP65 protection rating.
The module requires a 24 V DC supply.
Up to six input modules or six output modules may be used.
