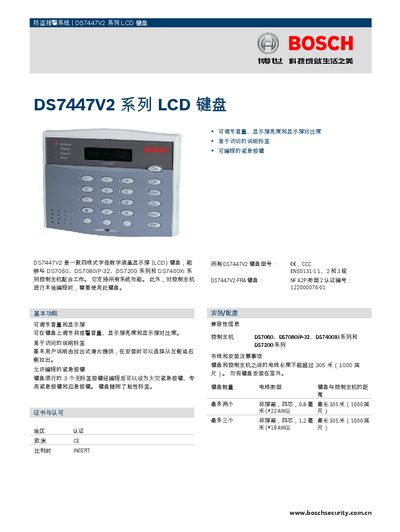

The DS7447V2 is a four-wire alphanumeric LCD keypad that can be used with DS7060, DS7080iP-32, DS7200 Series and DS7400Xi Series control panels. It supports all system functions. Additionally, this keypad is required when programming the control panel locally.
The DS7447V2 series LCD panel provides volume, brightness, and contrast control, with programmable emergency functions. It is designed to work with Bosch security control masters such as the DS7060, DS7080iP‑32, DS7400Xi and DS7200 series.
The guide details installation requirements, including a maximum cable length of 305 m (1000 ft), recommended cable types, and environmental limits. Technical specifications such as dimensions, weight, operating voltage, and current consumption are also provided. This manual is written in Chinese.
| Dimensions | 12 mm × 21 mm × 2 mm (4.6 × 8.2 × 0.8 in) |
|---|---|
| Weight | 439 g (15.5 oz) |
| Operating Voltage | 12 V DC |
| Current Consumption | Typical 95 mA, max 200 mA |
| Operating Temperature Range | 0 °C to +50 °C (32 °F to 122 °F) |
| Storage Temperature Range | +32 °C to +90 °C (90 °F to 194 °F) |
| Maximum Cable Length | 305 m (1000 ft) with appropriate cable |
The DS7447V2 panel works with the DS7060, DS7080iP‑32, DS7400Xi series and the DS7200 series control masters.
The cable length must not exceed 305 meters (1000 feet).
