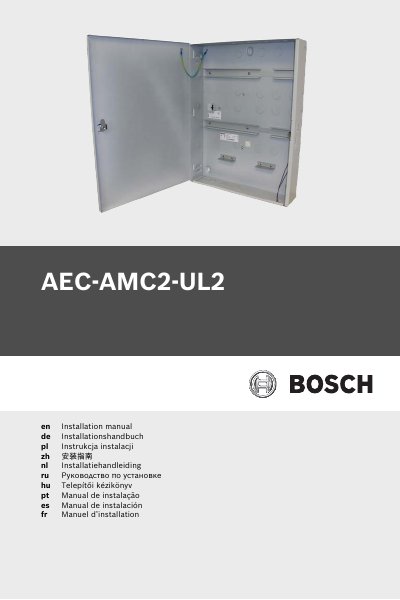

This manual describes the components, wiring and installation of the AEC-AMC2-UL2.
The AEC-AMC2-UL2 installation manual provides detailed information on the components included with the metal housing, the accessories kit, and the required mounting hardware. It lists each part of the housing, such as the cover grounding post, mounting rails, battery clips, and tamper switch, and describes the pre‑assembled cables supplied.
The guide walks the installer through mounting the housing on a wall, connecting the power supply, rechargeable batteries, and optional extension board, and configuring the unit for either 12 V or 24 V operation. Wiring diagrams and safety notes are included to ensure correct and safe installation.
| Supported voltage modes | 12 V and 24 V |
|---|---|
| 12 V mode configuration | One or two rechargeable batteries |
Open the housing cover, use the provided key, and secure the metal housing to the wall with the screw anchors supplied.
Connect the 7‑pin plug A1 to the AMC’s power supply connector labeled POWER, then attach the remaining connectors as shown.
Use one or two rechargeable batteries and connect them according to the wiring diagram for 12 V mode.
