zebra lp 2844-z barcode printer is a desktop barcode printer, based on zpl ii technology, can simplify the label format, and can be seamlessly integrated with zebra full-specification printers. enhanced electronic components give zlp 2844-z excellent performance and extraordinary efficiency, supporting multiple connection methods.
The Zebra LP 2844-Z is a desktop‑type barcode printer that uses ZPL II technology for simplified label formatting and seamless integration with other Zebra printers. It offers strong performance, multiple connectivity options, and support for Asian languages.

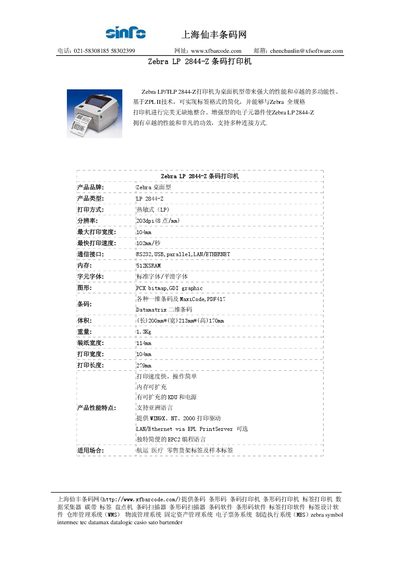

Key specifications include a 203 dpi resolution, 104 mm maximum print width, 102 mm/s peak speed, and interfaces such as RS232, USB, parallel and Ethernet. The printer supports a wide range of barcodes, including 1D, MaxiCode, PDF417 and DataMatrix, and provides expandable memory and optional power supplies. This manual is written in Chinese.
| Print method | Thermal transfer (LP) |
|---|---|
| Resolution | 203 dpi (8 dot/mm) |
| Maximum print width | 104 mm |
| Maximum print speed | 102 mm/s |
| Communication interfaces | RS232, USB, parallel, LAN/Ethernet |
| Memory | 512 KB |
| Supported fonts | Standard and smooth fonts |
| Graphics formats | PCX bitmap, GDI graphic |
| Supported barcodes | Various 1D, MaxiCode, PDF417, DataMatrix |
| Dimensions (L×W×H) | 200 mm × 213 mm × 170 mm |
| Weight | 1.3 kg |
| Media width | 114 mm |
| Maximum print length | 279 m |
It uses thermal transfer (LP) printing technology.
The printer provides RS232, USB, parallel, and LAN/Ethernet interfaces.
The printer can print up to 102 mm per second.
It supports various 1D barcodes, MaxiCode, PDF417, and DataMatrix.
