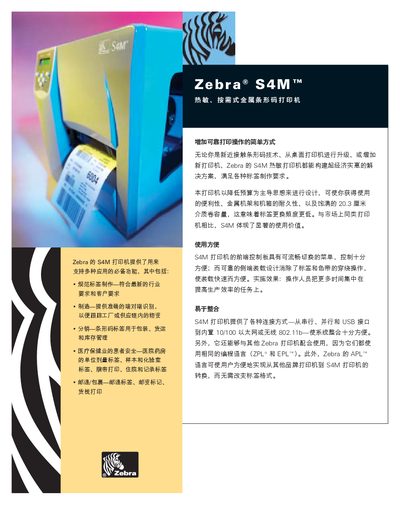

The Zebra S4M thermal printer is an affordable label-making solution that meets a variety of applications, including regulatory labeling, manufacturing, distribution, patient safety in the healthcare industry, and mailing/parcel. It features ease of use, a durable metal frame and housing, and a generous 20.3 cm media roll capacity.
The manual describes the Zebra S4M thermal barcode printer, highlighting its ease of use, durable metal chassis, and large media roll capacity for reduced label changes. It explains the printer’s menu navigation, side‑load design, and the ability to integrate with existing Zebra printers using the same programming languages.
The document lists technical specifications such as media roll dimensions, print resolutions, power requirements, and environmental limits, and details the various connectivity options including serial, parallel, USB, Ethernet and 802.11b wireless. This manual is written in Chinese.
| Media roll outer diameter | 203 mm |
|---|---|
| Media roll inner diameter | 76 mm |
| Alternative media roll outer diameter | 152 mm |
| Alternative media roll inner diameter | 25 mm |
| Print resolution (high) | 12 dots per mm |
| Power supply | 90‑265 VAC, 48‑62 Hz |
| Operating temperature | -40 °C to 60 °C |
| Operating humidity | 20‑85 % non‑condensing |
It supports serial, parallel, USB, built‑in 10/100 Ethernet, and wireless 802.11b connections.
The printer can use continuous paper, die‑cut labels, tag stock, and black‑mark media for thermal and thermal‑transfer printing.
The printer accepts media rolls up to 203 mm outer diameter (76 mm inner) or 152 mm outer diameter (25 mm inner).
