The TSC TTP series barcode label printer is a compact, easy-to-use and highly stable printer. It has various functions and optional accessories, supports large roll label paper and automatic label paper peeling. The printer supports both thermal transfer and direct thermal printing modes, with high resolution and fast printing speed. It also has multiple sensors and self-detection functions. The printer is suitable for various types of paper and barcode types, with built-in multiple fonts and graphic functions.

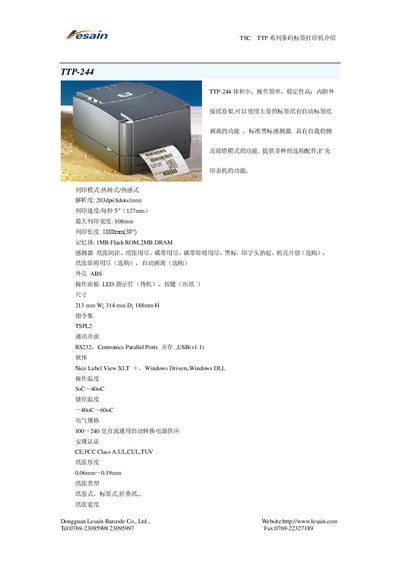

This manual introduces the TSC TTP‑244 barcode label printer, highlighting its compact size, simple operation, and high stability. It lists the supported print modes, resolution, speed, and maximum print width, as well as memory and sensor features.
The document also details the communication interfaces (RS232, Parallel, USB), power requirements, operating and storage temperature ranges, paper and ribbon specifications, built‑in fonts, graphic support, and certification information. This manual is written in Chinese.
| Print mode | Thermal transfer / Thermal direct |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Print speed | 127 mm/s |
| Maximum print width | 108 mm |
| Memory | 1 MB Flash ROM, 2 MB DRAM (expandable to 4 MB Flash) |
| Communication interfaces | RS232, Parallel (Centronics), USB |
| Power supply | 100‑240 V AC/DC auto‑switching |
| Operating temperature | -40 °C to 40 °C |
| Storage temperature | -40 °C to 60 °C |
| Paper thickness | 0.06 mm – 0.19 mm |
| Paper width | 50.8 mm – 112 mm |
| Ribbon width | 25.4 mm – 110 mm |
| Maximum ribbon length | 300 m |
| Built‑in fonts | 8 built‑in fonts + 1 TTF font |
| Font rotation | 0°, 90°, 180°, 270° |
| Graphic formats supported | PCX, BMP, JPG |
| Certifications | CE, FCC Class A |
It supports both thermal transfer and thermal direct (thermal‑sensitive) printing.
The printer can print up to 108 mm wide labels.
It includes RS232, a Centronics parallel port, and a USB port.
It works with a universal 100‑240 V AC/DC auto‑switching power supply.
