TEC B-SX4T/B-SX5T series barcode label printer is an industrial high-speed barcode printer. The printing speed of 76.2-254mm/s is suitable for the large-scale printing requirements of production enterprises. The floating sharp print head and the carbon tape saving module can effectively save the carbon tape loss. The sturdy steel structure can ensure long-term stable operation.
The TEC B-SX4T/SXST is an industrial high‑speed barcode label printer designed for large‑volume production environments. It offers a print speed of 76.2‑254 mm/s and a robust steel construction for long‑term stable operation.

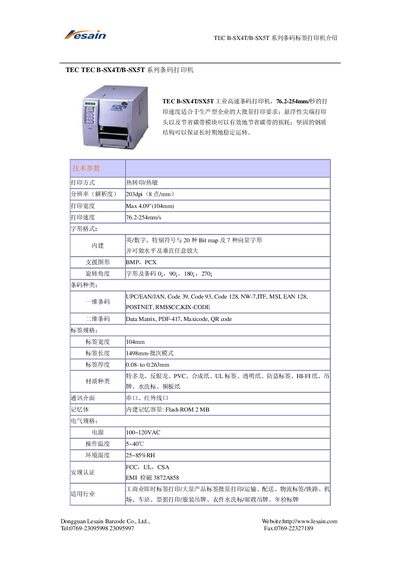

The printer supports both thermal transfer and direct thermal printing, a resolution of 203 dpi, and a maximum print width of 104 mm. It includes built‑in memory of 2 MB Flash ROM, serial and infrared communication interfaces, and complies with FCC, UL, and CSA certifications. This manual is written in Chinese.
| Printing method | Thermal transfer / Direct thermal |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Print width | Max 4.09 in (104 mm) |
| Print speed | 76.2‑254 mm/s |
| Memory | Flash ROM 2 MB |
| Power supply | 100‑120 VAC |
| Operating temperature | 5‑40 °C |
| Operating humidity | 25‑85 % RH |
| Communication interface | Serial port, Infrared port |
| Certifications | FCC, UL, CSA |
It supports both thermal transfer and direct thermal printing.
The printer can generate UPC/EAN/JAN, Code 39, Code 93, Code 128, NW‑7, TTF, MSL EAN 128, POSTNET, RM4SCC, KIX‑CODE, and 2‑D codes such as Data Matrix, PDF‑417, Maxicode, and QR code.
The maximum printable label width is 104 mm (4.09 in).
It requires an AC power supply of 100‑120 VAC.
