Key facts
- Brand
- TSC
- Model
- TTP-244
- Category
- Printer
- Industry
- Industrial
- Documents
- 3
- Languages
- ZH
- Last added
- 2012-01-11
Start here

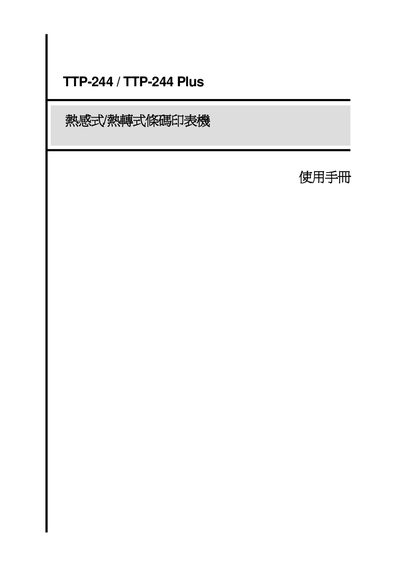

TSC TTP-244 / TTP-244 Plus Barcode Printer User Manual
This manual introduces the TTP-244/TTP-244 Plus barcode printer, covering product specifications, safety certifications, and the two printing modes (thermal and thermal‑transfer). It lists the supplied accessories and explains the basic components of the printer.
The guide walks the user through unpacking, installing optional external paper rolls, connecting power and communication interfaces, configuring settings, and performing routine cleaning and maintenance. Safety warnings, troubleshooting steps, and a self‑test mode are also included. This manual is written in Chinese.
TSC TTP-244 specifications
| Print mode | Thermal transfer / Thermal direct |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Print speed | 127 mm/s |
| Maximum print width | 108 mm |
| Memory | 1 MB Flash ROM, 2 MB DRAM (expandable to 4 MB Flash) |
| Communication interfaces | RS232, Parallel (Centronics), USB |
| Power supply | 100‑240 V AC/DC auto‑switching |
| Operating temperature | -40 °C to 40 °C |
| Storage temperature | -40 °C to 60 °C |
| Paper thickness | 0.06 mm – 0.19 mm |
| Paper width | 50.8 mm – 112 mm |
| Ribbon width | 25.4 mm – 110 mm |
| Maximum ribbon length | 300 m |
| Built‑in fonts | 8 built‑in fonts + 1 TTF font |
| Font rotation | 0°, 90°, 180°, 270° |
| Graphic formats supported | PCX, BMP, JPG |
| Certifications | CE, FCC Class A |
All TSC TTP-244 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What print modes does the TSC TTP-244 support?
It supports both thermal transfer and thermal direct (thermal‑sensitive) printing.
What is the maximum print width of the printer?
The printer can print up to 108 mm wide labels.
How do I install the optional external paper roll?
Mount the external paper roll according to the instructions in the “External Paper Roll (optional) Installation” section, then secure it in place before loading labels.
From: TSC TTP-244 / TTP-244 Plus Barcode Printer User Manual
