GODEX EZ series barcode label printer is an industrial barcode printer that has been marketed in various countries for more than ten years. It has a good reputation due to its excellent stability. Product features include thermal sensitive (line printing), resolution 203dpi, print speed 1-2 inches/second, print length 203mm (8 inches), print width up to 56mm (2.20 inches).

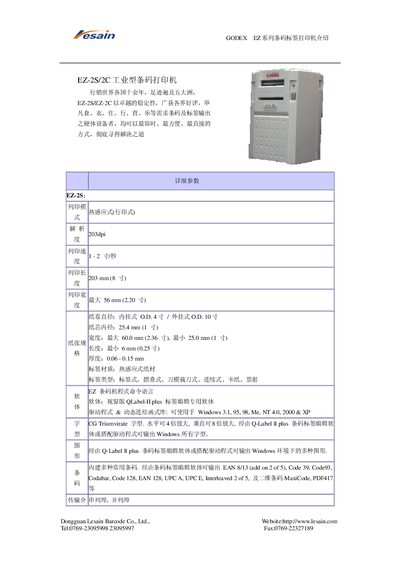

This manual introduces the GODEX EZ series industrial barcode label printers, model EZ-2S and EZ-2C, highlighting their stability and suitability for a wide range of labeling needs. It covers hardware specifications, supported label types, and environmental requirements.
The document also details the accompanying software (QLabel‑II plus), driver compatibility, interface options, memory configuration, power options, certifications, physical dimensions, and optional accessories such as the rotating cutter for the EZ-2C model. This manual is written in Chinese.
| Printing mode | Thermal transfer (heat‑sensitive) |
|---|---|
| Resolution | 203 dpi |
| Print speed | 1 – 2 inches/second |
| Maximum print width | 56 mm (2.20 in) |
| Paper roll diameter | Inner 4 in, outer 10 in |
| Memory | 64 KB EPROM, 32 KB SRAM |
| Power supply | AC 110 V or 240 V, DC 24 V 3A/5A |
| Operating temperature | 5 °C – 40 °C |
| Operating humidity | 30 % – 85 % |
| Certifications | CE, UL, CSA, FCC Class A |
| Physical dimensions | 127 mm × 215 mm × 144 mm |
| Weight | 1.3 kg |
| Cutting capability (EZ‑2C) | Up to 80 g/m², width 56 mm |
It uses a thermal‑transfer (heat‑sensitive) printing mode.
It can be powered by an external AC source (110 V or 240 V) or a DC source (24 V 3 A or 5 A).
