The CITIZEN CL-S703 series barcode label printer is a heavy-duty industrial printer with high printing accuracy, fast printing speed, and durability. It is suitable for customers in industries such as manufacturing, logistics, clothing, administrative units, banks, and highways with high quality requirements.
The CL‑S703 series is a heavy‑industry barcode label printer with 306 DPI resolution, 8 inches/second printing speed, and a durable metal printing structure. It supports both thermal‑transfer and direct‑thermal printing and is equipped with a 32‑bit RISC processor, 16 MB SDRAM and 4 MB Flash ROM.

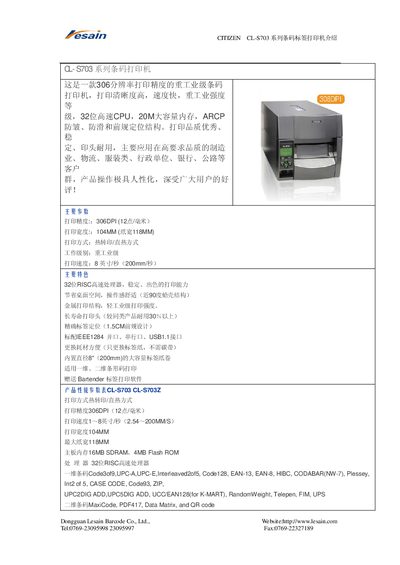

Standard interfaces include an IEEE 1284 parallel port, RS‑232 serial port, and USB 1.1. The printer handles label widths up to 118 mm and offers a range of 1‑D and 2‑D barcode symbologies, making it suitable for manufacturing, logistics, apparel, banking, and other high‑quality labeling applications. This manual is written in Chinese.
| Printing resolution | 306 DPI (12 dots/mm) |
|---|---|
| Printing speed | 8 inches/second (200 mm/s) |
| Maximum label width | 118 mm |
| Print width (nominal) | 104 mm |
| Processor | 32‑bit RISC high‑speed processor |
| Memory | 16 MB SDRAM, 4 MB Flash ROM |
| Standard interfaces | IEEE 1284 parallel, RS‑232 serial, USB 1.1 |
| Dimensions | 255 × 490 × 265 mm |
| Weight | 13.3 kg |
It supports both thermal‑transfer and direct‑thermal printing.
The printer comes with an IEEE 1284 parallel port, an RS‑232 serial port, and a USB 1.1 port.
The maximum paper width is 118 mm.
It supports a range of 1‑D barcodes such as Code‑39, UPC‑A, UPC‑E, Interleaved‑2‑of‑5, Code‑128, EAN‑13, EAN‑8, and 2‑D barcodes like MaxiCode, PDF417, Data Matrix, and QR code.
