Argox A-200 series barcode label printer is a powerful, compact, desktop barcode printer with an advanced control panel, three communication interfaces, and supports multiple barcode types and media. It is suitable for retail, postal, medical management, clothing shoes, jewelry, hardware, ticketing, logistics and other industries.
The Lesain A-200 is a compact desktop barcode label printer equipped with an advanced control panel and three communication interfaces (parallel, RS‑232, and USB). It supports a wide range of barcode symbologies and offers both reflective and transmissive label sensors for flexible media handling.

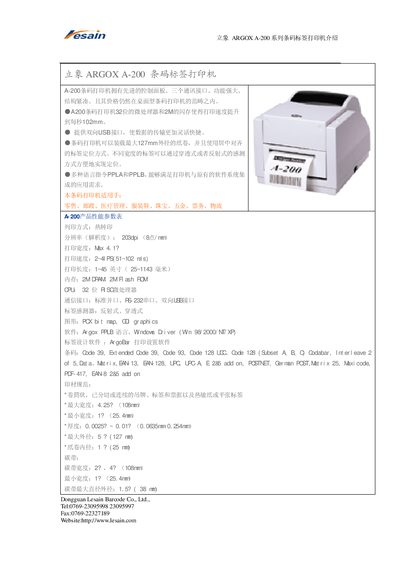

The manual details the printer's technical specifications, including a 32‑bit RISC CPU, 2 MB DRAM and Flash, 203 dpi resolution, up to 102 mm/s print speed, and media handling up to 4.25 in (108 mm) width. Physical dimensions, power requirements, certifications, and operating environment limits are also provided. This manual is written in Chinese.
| Printing method | Thermal transfer |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print width | Max 4.1 in (≈108 mm) |
| Print speed | 2–4 IPS (51–102 mm/s) |
| Memory | 2 MB DRAM, 2 MB Flash ROM |
| CPU | 32‑bit RISC microprocessor |
| Communication interfaces | Parallel port, RS‑232 serial, bidirectional USB |
| Label sensors | Reflective and transmissive |
| Maximum media width | 4.25 in (108 mm) |
| Maximum media roll diameter | 127 mm |
| Power supply | 110/220 VAC, 10 % tolerance, 50/60 Hz |
| Physical dimensions | W200 mm × H170 mm × L245 mm |
| Weight | 4.8 lb (2.2 kg) |
| Certifications | CE, UL, CUL, FCC, CCC |
| Operating temperature range | 40 °F – 100 °F (4 °C – 38 °C) |
It uses thermal transfer printing.
The printer provides a standard parallel port, an RS‑232 serial port, and a bidirectional USB interface.
The printer can print at 2 to 4 inches per second (51 to 102 mm/s).
Supported codes include Code 39, Extended Code 39, Code 93, Code 128, UCC, Codabar, Interleaved 2‑of‑5, Data Matrix, EAN‑13, EAN‑128, UPC, and many others.
