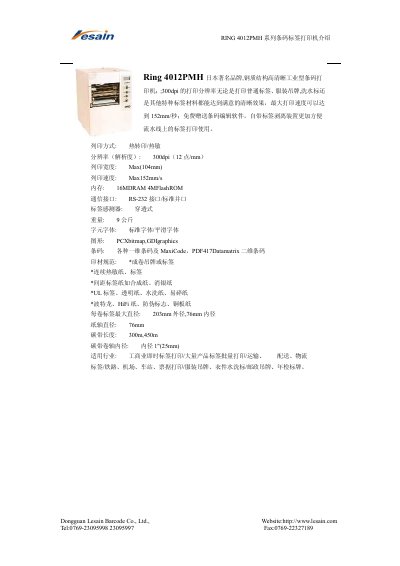

RING 4012PMH series barcode label printer is a high-definition industrial type barcode printer with a steel structure and a famous Japanese brand. Its 300dpi print resolution can achieve satisfactory clarity effects for printing ordinary labels, clothing tags, washing labels or other special label materials, and the maximum printing speed can reach 152mm/s.
The RING 4012PMH is an industrial‑grade barcode label printer with a steel structure and high‑definition output. It prints at 300 dpi (12 dots/mm) and can reach a maximum speed of 152 mm/s, suitable for a wide range of label types including clothing tags, wash labels, and special‑purpose media.
Equipped with 16 MDRAM and 4 MFlashROM memory, the printer supports thermal transfer and direct thermal printing, offers RS‑232 and standard parallel interfaces, and includes a built‑in label sensor. It handles various media such as continuous thermal paper, label rolls, synthetic paper, UL labels, transparent paper, and more, making it adaptable for manufacturing, logistics, and retail environments. This manual is written in Chinese.
| Printing method | Thermal transfer / direct thermal |
|---|---|
| Resolution | 300 dpi (12 dots/mm) |
| Maximum print width | 104 mm |
| Maximum print speed | 152 mm/s |
| Memory | 16 MDRAM, 4 MFlashROM |
| Communication interface | RS‑232 and standard parallel port |
| Label sensor | Through‑type sensor |
| Supported media | Continuous thermal paper, label rolls, synthetic paper, UL labels, transparent paper, water‑wash paper, anti‑counterfeit paper, copper‑foil paper, etc. |
It prints at 300 dpi, which equals 12 dots per millimeter.
The printer can print up to 152 mm per second.
It provides an RS‑232 serial interface and a standard parallel port.
