The ARGOX OS-314 Series Barcode Label Printer is a 4-inch micro-label barcode printer with 300dpi resolution, 2MB of large-capacity memory, an optional paper roll frame, and an automatic label glass. It is suitable for retail, postal, medical management, clothing shoes, jewelry, hardware, ticketing and other industries.
The ARGOX OS-314 is a compact 4‑inch barcode label printer with a 300 dpi resolution that delivers laser‑like print quality. It features 2 MB of dynamic memory, optional roll feeder for 200 mm diameter rolls, and an optional automatic label glass for small‑size tags.

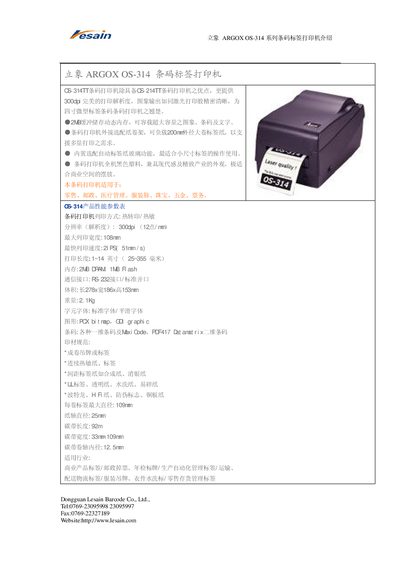

Designed for retail, postal, medical, apparel, jewelry and other sectors, the printer supports both thermal transfer and direct thermal modes, a wide range of label and ribbon materials, and provides RS‑232 and standard parallel interfaces for easy integration. This manual is written in Chinese.
| Printing method | Thermal transfer / thermal direct |
|---|---|
| Resolution | 300 dpi (12 dots/mm) |
| Maximum print width | 108 mm |
| Maximum print speed | 2 IPS (51 mm/s) |
| Print length range | 1–14 inches (25–355 mm) |
| Memory | 2 MB DRAM, 1 MB Flash |
| Communication interface | RS‑232 and standard parallel port |
| Dimensions (L×W×H) | 278 mm × 186 mm × 153 mm |
| Weight | 2.1 kg |
| Ribbon length | 92 m |
| Ribbon width | 33 mm–109 mm |
| Maximum roll diameter | 109 mm |
It prints at 300 dpi (12 dots per millimeter).
It supports continuous thermal paper, label rolls, synthetic paper, silver‑foil, Hi‑Fi paper, anti‑counterfeit labels, copper‑plate paper and more.
The printer offers an RS‑232 serial port and a standard parallel interface.
The maximum print width is 108 mm.
