TSC TTP series barcode label printers are produced by Dongguan Lesain Barcode Co., Ltd. The printer adopts thermal transfer/thermal direct printing mode, with a resolution of 203dpi and a printing speed of 4 inches/second. The printing width ranges from 19mm to 104mm, and the printing length ranges from 10mm to 1000mm. The printer is equipped with 2MB Flash ROM and 4MB DRAM memory, as well as various sensors and an LCD display panel. It supports various types and sizes of paper, and has good communication interface and operating temperature range. The printer is certified by CE, FCC Class A, UL, CUL, TUV, and EMC.

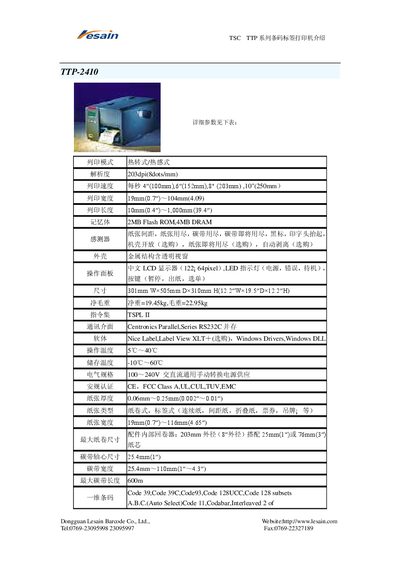

The manual introduces the Lesain TTP series barcode label printer, detailing its physical dimensions, printing capabilities, and hardware components such as memory and display.
It also explains operation settings, supported barcode symbologies, interface options, and environmental and safety specifications. This manual is written in Japanese.
| Resolution | 203 dpi (8 dots/mm) |
|---|---|
| Print Speed | 4–10 inches per second (100–250 mm/s) |
| Print Width | 19 mm (0.7 in) – 104 mm (4.09 in) |
| Print Length | 10 mm (0.4 in) – 1000 mm (39.4 in) |
| Memory | 2 MB Flash ROM, 4 MB DRAM |
| Display | 122 × 64 pixel LCD with LED indicators |
| Operating Temperature | 5 °C – 40 °C |
| Power Supply | 100 V – 240 V AC |
| Supported Barcodes | Code 39, Code 39C, Code 93, Code 128, UCC, etc. |
| Media Thickness | 0.06 mm – 0.20 mm |
| Maximum Media Width | 19 mm (0.7 in) – 116 mm (4.65 in) |
| Connectivity | Parallel, RS‑232C, RS‑422/485 |
It supports Code 39, Code 39C, Code 93, Code 128, UCC, and related subsets.
The printer prints at 203 dpi (8 dots per mm).
It operates from an AC supply of 100 V to 240 V.
The device works between 5 °C and 40 °C.
