The SATO M84PRO series barcode label printer is a high-resolution industrial printer known for its durability. It can print images with a resolution of 609 dpi and has a unique automatic detection system that can detect the installed print head. It offers easy selection of print resolution: 203 dpi, 305 dpi, or 609 dpi. It can print labels directly from software such as WORD, EXCEL, and ACCESS, as well as from label design software. This new M84PRO printer is fast, reliable, economical, and meets the professional label printing needs. It can print various types of labels, clothing tags, laundry fabric labels, and special purpose stickers for commercial and industrial applications.
The SATO M84PRO is a high‑resolution industrial barcode label printer that supports thermal transfer and direct‑thermal printing. It offers selectable print resolutions of 203 dpi, 305 dpi, or 609 dpi and a print speed of 2‑10 inches per second, making it suitable for a wide range of labeling applications.

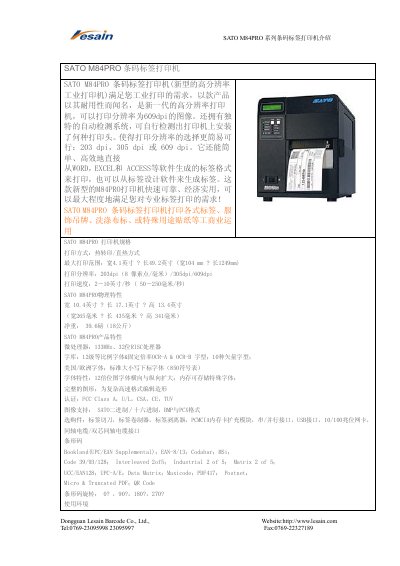

The printer includes multiple communication interfaces (parallel, serial, USB 1.1, and 10/100 Mbps Ethernet) and operates in temperatures from 5 °C to 40 °C with up to 90 % relative humidity without condensation. Physical dimensions, power consumption, and optional accessories are also detailed in the leaflet. This manual is written in Chinese.
| Printing method | Thermal transfer / Direct thermal |
|---|---|
| Maximum print area | Width 4.1 in (104 mm) × Length 49.2 in (1249 mm) |
| Print resolution | 203 dpi / 305 dpi / 609 dpi |
| Print speed | 2‑10 inches/second (50‑250 mm/s) |
| Power consumption (working) | 130 W |
| Operating temperature | 5 °C – 40 °C (41 °F – 104 °F) |
| Communication interfaces | Parallel (IEEE1284), Serial RS‑232C/RS‑422/485, USB 1.1, 10/100 Mbps Ethernet |
| Weight | 39.6 lb (18 kg) |
It supports both thermal transfer and direct‑thermal printing.
The printer can operate at 203 dpi, 305 dpi, or 609 dpi.
It offers parallel (IEEE1284), serial RS‑232C and RS‑422/485, USB 1.1, and a 10/100 Mbps Ethernet port.
The printer operates between 5 °C and 40 °C (41 °F – 104 °F).
