TSC TTP series barcode label printer, providing thermal and thermal transfer printing methods, printing accuracy up to 300dpi. Can print various labels and papers, including roll paper, foldable label paper, etc. Common bar code formats can be printed. The fonts and barcodes can be rotated at 4 angles. TTP-344M offers 5 sets of different sized English fonts. Using the magnification function, the font size can be changed in a wider range. Smooth fonts can be downloaded from the simple label design window software, or a dedicated font card can be installed.

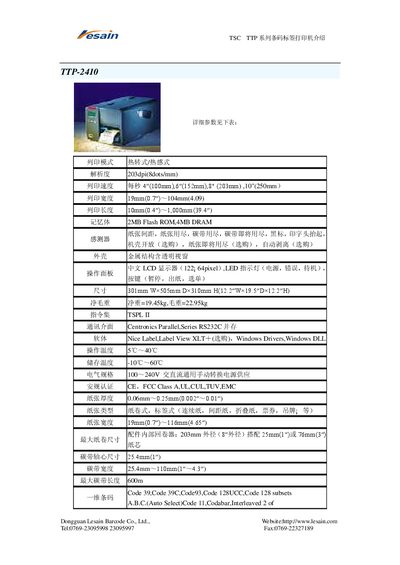

This manual introduces the Lesain TTP series barcode label printer, covering its physical dimensions (301 mm W × 505 mm D × 310 mm H), net weight (19.45 kg) and gross weight (22.95 kg), as well as environmental limits such as operating temperature (5 °C – 40 °C) and storage temperature (‑10 °C – 60 °C).
The document details technical specifications including 203 dpi resolution, print speeds of 4 mm/s to 10 mm/s for label lengths up to 250 mm, supported label widths from 19 mm to 116 mm, memory (2 MB Flash ROM, 4 MB DRAM), LCD display (122 × 64 pixel), LED indicators, power supply range (100 V – 240 V AC), interface options (Parallel, RS‑232C, RS‑422/485), and a wide range of barcode symbologies and fonts. Contact information for Lesain support is also provided. This manual is written in Japanese.
| Resolution | 203 dpi (8 dots/mm) |
|---|---|
| Print Speed | 4 mm/s (100 mm) – 10 mm/s (250 mm) |
| Print Width | 104 mm (4.09 in) |
| Memory | 2 MB Flash ROM, 4 MB DRAM |
| LCD Display | 122 × 64 pixel |
| Power Supply | 100 V – 240 V AC |
| Operating Temperature | 5 °C – 40 °C |
| Storage Temperature | -10 °C – 60 °C |
| Label Thickness | 0.06 mm – 0.2 mm |
| Interface Options | Parallel, RS‑232C, RS‑422/485 |
| Supported Barcodes | Code 39, Code 39C, Code 93, Code 128 (UCC, subsets), UPC‑A, UPC‑E, EAN, etc. |
The printer supports Parallel, RS‑232C, and RS‑422/485 interfaces.
It supports Code 39, Code 39C, Code 93, Code 128 (UCC and subsets), UPC‑A, UPC‑E, EAN and other common symbologies.
The printer operates between 5 °C and 40 °C.
It can be powered from 100 V to 240 V AC.
