The POSTEK T-2 series industrial barcode label printer features a 32-bit ARM CPU, metal structure, advanced thermal/thermal transfer printing technology, movable paper sensor, and more.
The POSTEK T-2 is an industrial‑grade barcode label printer featuring a 32‑bit ARM CPU, 2 MB Flash ROM and 8 MB SDRAM for handling complex print jobs at high speed. Its robust aluminum chassis, fixed‑frame design and adjustable ribbon carriage provide durability and reliable operation.

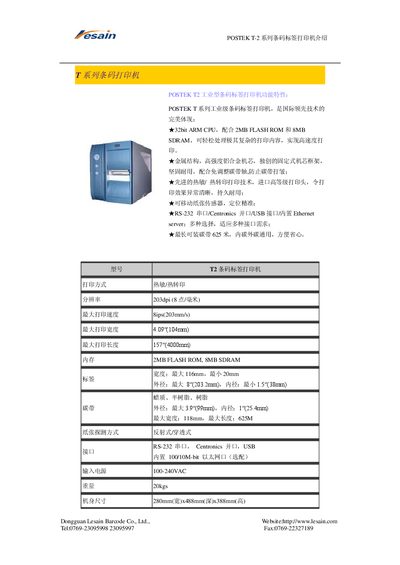

The printer supports thermal and thermal‑transfer printing, offers RS‑232, Centronics, USB and optional Ethernet interfaces, and can accommodate ribbons up to 625 m. It operates from 100‑240 VAC, weighs about 20 kg, and measures 280 mm × 488 mm × 388 mm. This manual is written in Chinese.
| Resolution | 203 dpi (8 dots/mm) |
|---|---|
| Maximum print speed | 8 ips (203 mm/s) |
| Maximum print width | 4.09 in (104 mm) |
| Maximum print length | 157 in (4000 mm) |
| Memory | 2 MB Flash ROM, 8 MB SDRAM |
| Interfaces | RS‑232 serial, Centronics parallel, USB, optional 100/10 M‑bit Ethernet |
| Power input | 100‑240 VAC |
| Weight | 20 kg |
| Dimensions (W×D×H) | 280 mm × 488 mm × 388 mm |
| Maximum ribbon length | 625 m |
The printer provides RS‑232 serial, Centronics parallel, USB, and an optional 100/10 M‑bit Ethernet port.
The maximum printable width is 4.09 inches (104 mm).
Store the printer at temperatures between –40 °C and 60 °C with relative humidity up to 85 % and no condensation.
