TEC B-872/882 is an industrial wide-format printer. It has 300 DPI resolution, which meets the quality requirement of most industrial users. The maximum print width of 213.2mm is specially designed for large label users. The floating print head can effectively save the carbon tape and prolong the life of the print head.
The TEC B-872/882 is an industrial ultra‑wide barcode printer offering 300 dpi resolution (12 dots/mm) and a maximum print width of 213.2 mm, suitable for large‑format labels. It supports both thermal transfer and direct thermal printing, uses a floating‑point tip print head to save ribbon and extend head life, and provides 16 MB DRAM plus 2 MB Flash ROM for buffering.

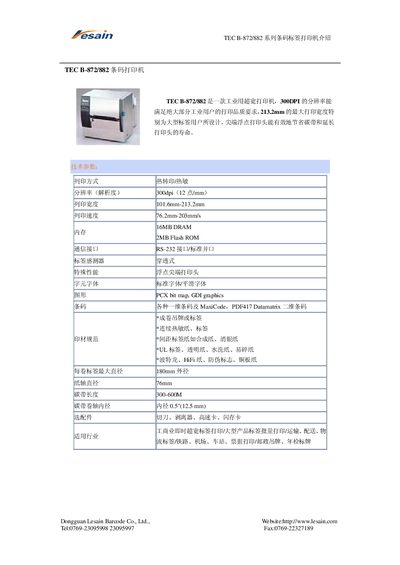

Communication options include RS‑232 and a standard parallel port, while optional accessories such as a cutter, delaminator, high‑speed card, and memory card expand functionality. The printer is targeted at industrial, commercial, logistics, railway, airport, and postal labeling applications. This manual is written in Chinese.
| Printing method | Thermal transfer / direct thermal |
|---|---|
| Resolution | 300 dpi (12 dots/mm) |
| Print width | 101.6 mm – 213.2 mm |
| Print speed | 76.2 mm/s – 203 mm/s |
| Memory | 16 MB DRAM, 2 MB Flash ROM |
| Communication interface | RS‑232 and standard parallel port |
| Label sensor | Through‑type (penetrating) |
| Special performance | Floating‑point tip print head |
| Supported barcodes | 1‑D barcodes, MaxiCode, PDF417, DataMatrix |
| Maximum roll diameter | 180 mm |
| Ribbon core diameter | 0.5 in (12.5 mm) |
| Optional accessories | Cutter, delaminator, high‑speed card, memory card |
It supports both thermal transfer and direct thermal printing.
The printer can print up to 213.2 mm wide labels.
It offers RS‑232 and a standard parallel port.
Optional accessories include a cutter, delaminator, high‑speed card, and memory card.
