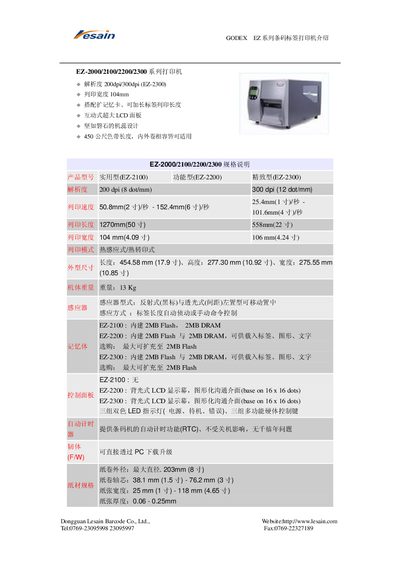

GODEX EZ series barcode label printers, including product model, resolution, printing speed, printing length, printing width, printing mode, appearance size, sensor, memory, control panel, automatic timer, paper material specifications, carbon tape specifications and other information.
The EZ series barcode label printers from Lesain offer a range of models (EZ‑2000, EZ‑2100, EZ‑2200, EZ‑2300) with features such as high‑resolution printing, LCD panels, and expandable memory. The manual describes the printer hardware, supported label types, and software tools like QLabel‑II and EZPL command language.
Technical specifications, environmental limits, power requirements, and connectivity options (parallel port, PS/2 keyboard wedge) are detailed, along with instructions for label loading, maintenance, and optional accessories such as peel‑off units and cutter blades. This manual is written in Chinese.
| Resolution | 200 dpi (EZ‑2000/2100/2200) / 300 dpi (EZ‑2300) |
|---|---|
| Print speed | 50.8 mm/s (2 in) – 152.4 mm/s (6 in) |
| Maximum print length | 1270 mm (50 in) – 558 mm (22 in) |
| Print width | 104 mm (4.09 in) – 106 mm (4.24 in) |
| Memory (Flash/DRAM) | 2 MB Flash + 2 MB DRAM (expandable to 2 MB Flash) |
| Power supply | 100/240 VAC, 50/60 Hz auto‑switching |
| Operating temperature | 40 °F to 104 °F |
| Weight | 13 kg |
Memory can be expanded up to an additional 2 MB of Flash storage.
They operate from 100 V to 240 V AC at 50/60 Hz with an automatic AC/DC switching power supply.
