The Extron HSA 200S series is a compact, fixed configuration hideaway surface mount junction box designed to be installed on tables or podiums. It has an ergonomic design, easy installation, and inconspicuous connector sockets. The HSA 200SE model also includes a built-in expandable audio/video line driver.
The HSA 200S series is a compact, fixed‑configuration, “up‑lift” Hideaway™ surface‑mount junction box designed for desk or podium installations. It offers video and audio pass‑through connections, RJ‑45 networking, and a mechanical lock for durable operation.

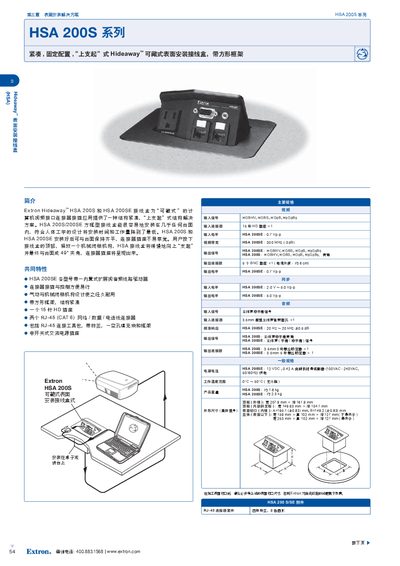

The guide explains how to release the mechanical lock, lift the box to a 49° angle, and access the connectors. It also lists key specifications such as video input formats, power requirements, dimensions, and accessories included with the product. This manual is written in Chinese.
| Video input signals | RGBHV, RGBS, RGsB, RsGsBs |
|---|---|
| Video bandwidth | 300 MHz (-3 dB) |
| Audio input | Stereo unbalanced 3.5 mm mini jack |
| Power supply | 12 VDC, 0.42 A |
| Weight | ≈1.8 kg |
| Top plate outer dimensions | 207.9 mm × 161.9 mm |
| RJ‑45 connectors | Two RJ‑45 (CAT 6) ports |
Press the top of the box to release the mechanical lock; the box lifts up to a 49° angle, exposing the connectors.
It supports RGBHV, RGBS, RGsB, and RsGsBs video input signals.
The unit is powered by a 12 VDC adapter delivering 0.42 A.
The outer top plate measures 207.9 mm wide by 161.9 mm deep.
