The LTC 0355 series is a compact, rugged digital high-definition monochrome CCD camera that uses a 1/3-inch image format. Its excellent sensitivity and high resolution make it perform at its best in almost any situation. Its easy installation, digital signal processing, on-screen menu, first-class image quality and outstanding reliability take this high-definition monochrome camera's video performance to a new level. The LTC 0355 series is the best choice for both novice and professional users.

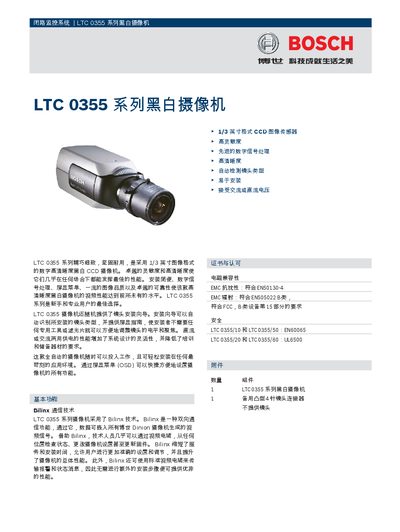

The Bosch LTC0355 series is a black‑and‑white camcorder featuring a 1/3‑inch CCD sensor, digital HD output and Bilinx two‑way communication. The manual provides installation instructions, safety information and detailed technical specifications.
Key sections include basic functions, power‑supply options, hardware accessories, dimensions, operating temperature and environmental compliance. It also lists model‑specific data for the LTC0355/10, /20, /50 and /60 variants. This manual is written in Japanese.
| Image sensor format | 1/3 inch CCD |
|---|---|
| Resolution | 752 × 582 (horizontal × vertical) |
| Minimum illumination (CCIR) | 0.09 lux (0.009 fc) |
| Power supply (DC) | 12 VDC 10.8‑39 VDC (CCIR) |
| Power supply (AC) | 24 VAC 12‑28 VAC |
| Power consumption | 4 W (excluding accessories) |
| Weight | 0.45 kg (0.99 lb) |
| Operating temperature | -20 °C to 50 °C |
| Dimensions (W × H × D) | 58 mm × 66 mm × 122 mm |
It can be powered from DC 12 V (10.8‑39 V) or from AC 24 V (12‑28 V) depending on the model.
The camcorder measures 58 mm × 66 mm × 122 mm (width × height × depth).
It uses a 1/3‑inch CCD image sensor.
The unit weighs about 0.45 kg (0.99 lb).
