The LTC 8x00/90 Integrated Series Allegiant Matrix/Control System is a closed-circuit surveillance system that combines advanced switching and computer technology to provide powerful performance and unique system features for security users. It can display the video of any camera on any monitor according to user needs, and has various configurations and rich features.

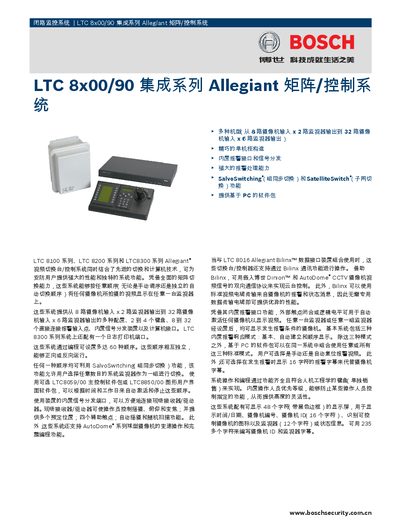

This manual describes the Bosch LTC 8x00/90 Allegiant series, which combines advanced video switching and computer technology for security applications. It covers configurations ranging from 8×2 up to 32×6 camera inputs and monitor outputs, built‑in alarm interfaces, signal distribution, and PC‑based software control.
The document includes hardware specifications, mechanical dimensions, power requirements, wiring guidelines, and details on optional accessories such as keyboards, Bilinx data interfaces, and PTZ receiver/driver units. It also provides instructions for programming up to 60 sequences, using SalvoSwitching and SatelliteSwitch functions, and troubleshooting procedures. This manual is written in Chinese.
| Video inputs (standard) | 8‑16‑32 |
|---|---|
| Video outputs | 2‑5‑6 |
| Alarm inputs | 8‑16‑32 |
| Alarm outputs | 2‑5‑6 |
| RS‑232 console ports | 1 per model |
| Input voltage range | 108‑253 VAC, 50/60 Hz |
| Dimensions (LTC 8300) | 440 × 305 × 89 mm |
Programming can be done with the optional LTC 8059/00 main control software package or the LTC 8850/00 GUI software.
The system operates from 4 °C to 55 °C.
