The EV04 series electric proportional valve is an electric proportional valve product launched by Bosch Rexroth. It has a DC24V input voltage, a maximum working pressure of 8 bar, and a rated flow rate of 350 l/min.

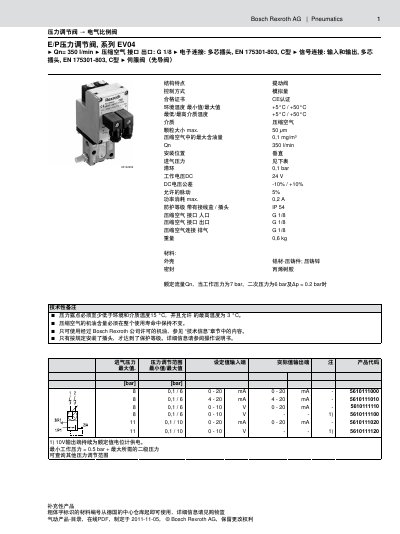

This manual describes the Bosch Rexroth EV04 series electric proportional E/P pressure regulate valve, a pneumatic valve that uses analog control signals (4‑20 mA or 0‑10 V) to regulate compressed‑air pressure. It lists the valve’s construction features, environmental limits, and required oil‑free air quality.
Technical data such as maximum flow (350 l/min), supply voltage (24 V DC), protection class (IP54), and wiring connections with multi‑core plugs are presented together with electrical diagrams and pin‑assignments for various signal options. Installation notes cover inlet pressure ranges, required fusing, and EMV shielding requirements. This manual is written in Chinese.
| Maximum flow rate (Qn) | 350 l/min |
|---|---|
| Operating temperature range | +5 °C to +50 °C |
| Medium | Compressed air |
| Maximum particle size | 50 µm |
| Maximum oil content in air | 0.1 mg/m³ |
| Protection class | IP54 |
| Power consumption | max 0.2 A |
| Supply voltage | 24 V DC |
| Weight | 0.6 kg |
The EV04 valve can handle a maximum flow rate of 350 l/min.
The valve is rated IP54 with a protective enclosure and connector box.
The valve operates on a 24 V DC supply.
The compressed air must contain no more than 0.1 mg/m³ of oil.
