The DS7447V2 is a four-wire alphanumeric LCD keypad that can work with DS7060, DS7080iP-32, DS7200 Series and DS7400Xi Series control panels. It supports all system functions. This keyboard is required for local programming of the control panel.
The DS7447V2 series LCD keypad is a security device with an alphanumeric LCD display that can control volume, brightness, and contrast. It is designed to work with Bosch security control panels and includes programmable emergency functions.

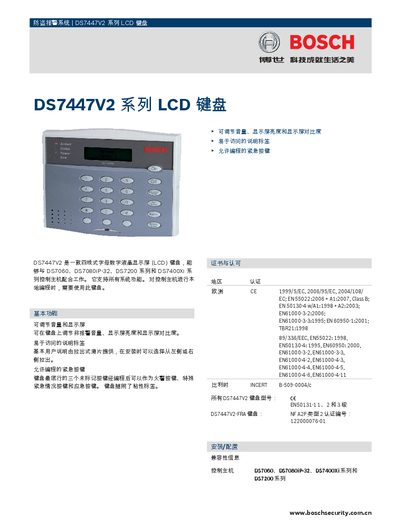

The manual covers installation guidelines, compatible control panels, environmental and electrical requirements, and detailed technical specifications such as dimensions, weight, operating temperature, and power consumption. This manual is written in Chinese.
| Dimensions | 12 x 21 x 2 cm |
|---|---|
| Weight | 439 g |
| Operating Temperature | 0 °C to +50 °C |
| Standby Power Consumption | 95 mA |
| Maximum Power Consumption | 200 mA |
| Operating Voltage | 12 V DC |
| Maximum Cable Distance | 305 m (1000 ft) |
The keypad can be installed up to 305 meters (1000 feet) from the control panel.
It is compatible with DS7060, DS7080iP‑32, DS7400Xi series, and DS7200 series control panels.
