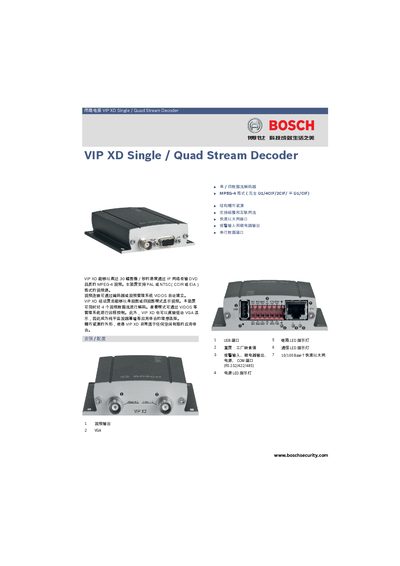

The VIP XD Single / Quad Stream Decoder is a CCTV decoder that supports single or quad view modes for video display and can transmit DVD-quality MPEG-4 video at high speed. This decoder features a compact structure, support for multicast and internet streaming, fast Ethernet interface, alarm inputs, and relay outputs.
This manual describes the Bosch VIPXD single/quad stream decoder, a compact MPEG‑4 video decoder that can handle up to four video streams simultaneously. It supports PAL or NTSC sources and can output video via VGA or composite video connectors.
The document includes technical specifications, wiring diagrams, installation steps, configuration via a web interface, and ordering information for accessories and power supplies. This manual is written in Chinese.
| Maximum video data rate | 20 MBit/s (4 channels) |
|---|---|
| Supported video resolutions | 704x576/480 (D1/4CIF), 352x288/240 (CIF), 176x144/120 (QCIF) |
| Overall latency (IP MPEG‑4) | 120 ms |
| Network protocols | RTP, Telnet, UDP, TCP, IP, HTTP, IGMP, ICMP, ARP, SNMP |
| Power consumption | ≈7 VA |
| Operating temperature | 0‑50 °C (32‑122 °F) |
| Input voltage | 12‑24 VDC |
The decoder can simultaneously decode up to four video streams.
It includes a 10/100 Base‑T Ethernet port with auto‑detect, supporting half‑ and full‑duplex operation.
