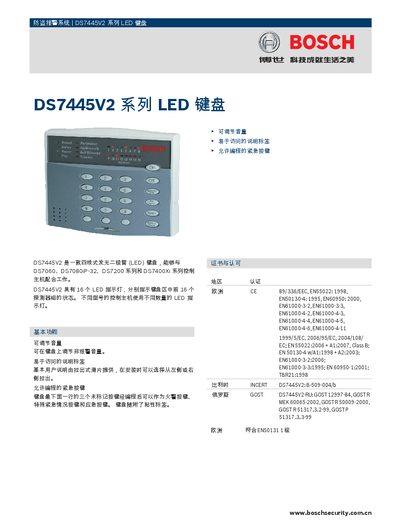

The DS7445V2 is a four-wire LED keypad that is compatible with the DS7060, DS7080iP-32, DS7200 Series, and DS7400Xi Series control panels. It has 16 LED indicators that show the status of the first 16 detector zones in the keypad zone. Different control panel models use different numbers of LED indicators.
The DS7445V2 series LED keyboard is a four‑zone security keypad with 16 LED indicators that show the status of each detector zone. It is compatible with various Bosch control panels such as the DS7060, DS7080iP‑32, DS7200, and DS7400Xi series.
The guide provides step‑by‑step installation and configuration instructions, including mounting options, wiring lengths, environmental requirements, and detailed technical specifications such as power consumption, operating voltage, temperature range, and dimensions. This manual is written in Chinese.
| LED indicators | 16 |
|---|---|
| Current consumption (idle) | 95 mA |
| Current consumption (max) | 200 mA |
| Operating voltage | 12 VDC |
| Dimensions | 12 mm × 21 mm × 2 mm |
| Weight | 439 g |
The DS7445V2 keyboard has 16 LED indicators.
It operates on a 12 VDC power supply.
It draws 95 mA in idle mode and up to 200 mA at maximum load.
