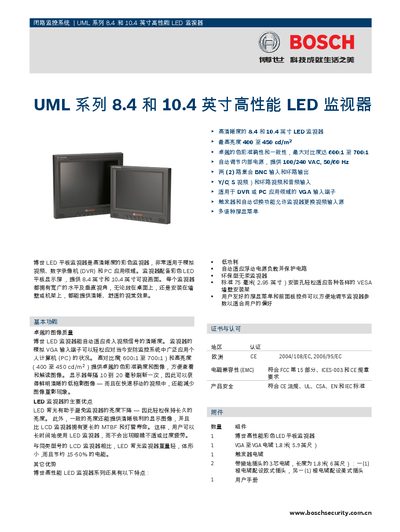

The Bosch UML series 8.4 and 10.4 inch high performance LED monitors are high-resolution color monitors ideal for use with analog video, digital video recorders (DVRs) and PC applications. The monitors feature color LED flat panel displays, providing 8.4-inch and 10.4-inch viewable images. Each monitor has wide horizontal and vertical viewing angles, providing clear, comfortable viewing whether placed on a desktop or mounted on a wall or rack.
This manual describes Bosch's UML series high‑performance LED monitors, available in 8.4‑inch and 10.4‑inch sizes. The monitors are designed for analog video, DVR and PC applications and feature LED backlight, high contrast, and low power consumption.
The document includes technical specifications, electrical and mechanical dimensions, connector details, installation guidelines, menu operation, and certification information. It also lists the supplied accessories and provides troubleshooting tips for common video input issues. This manual is written in Chinese.
| Display size (UML-082-90) | 8.4 inches (213.4 mm) |
|---|---|
| Display size (UML-102-90) | 10.4 inches (264.2 mm) |
| Resolution | 800 × 600 pixels |
| Contrast ratio (UML-082-90) | 600:1 (typical) |
| Contrast ratio (UML-102-90) | 700:1 (typical) |
| Brightness (UML-082-90) | 450 cd/m² (typical) |
| Brightness (UML-102-90) | 400 cd/m² (typical) |
| Operating temperature range | 0 °C to 45 °C |
Both models offer a horizontal viewing angle of 160° and a vertical viewing angle of 140°.
The monitors are rated for operation between 0 °C and 45 °C.
