The CP516W LED keyboard is a 16-zone LED keyboard with a protective door that is compatible with the partitioned Solution 16 control panel. The keyboard displays the status of the alarm system using a combination of numbers and text, and is very easy to operate. The keyboard also has multiple single-button functions, allowing users to perform various system operations by simply holding down the button for two seconds. In addition, the keyboard can trigger fire alarms, emergency alarms, and medical assistance alarms. The keyboard has dimensions of 7.2 x 12.7 x 2.3 cm and is suitable for indoor surface installation.
The CP516W LED Keyboard is a 16‑zone security keypad with a protective door, designed for use with Solution 16 alarm control panels. It displays system status with LED indicators and offers simple operation through combined numeric and text displays.

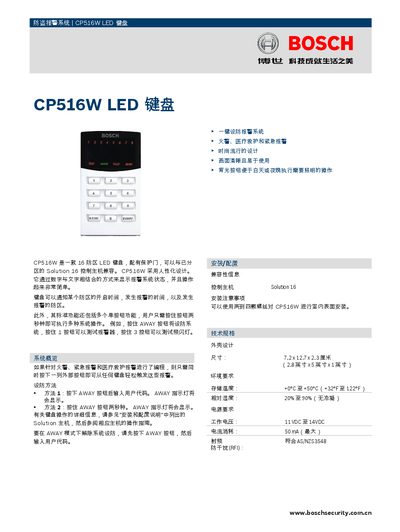

This manual covers arming methods, installation and configuration, compatibility information, technical specifications, and ordering details, helping users set up and operate the keypad safely and effectively. This manual is written in Chinese.
| Dimensions | 7.2 x 12.7 x 2.3 cm |
|---|---|
| Storage Temperature | +5 °C to +50 °C |
| Relative Humidity | 20% to 90% (no condensation) |
| Operating Voltage | 11 VDC to 14 VDC |
| Current Consumption | 50 mA max |
| Number of Zones | 16 zones |
You can arm it by either pressing the AWAY button then entering your user code, or by holding the AWAY button for two seconds; the AWAY indicator will light.
The keypad operates on 11 VDC to 14 VDC and draws up to 50 mA of current.
It can display up to 16 separate zones.
