The Integration Server software package allows multiple, normally incompatible systems to communicate with each other. It can communicate with other devices in three ways: RS-232, digital I/O, and directly connected to the Allegiant switch. Integration Server can identify events occurring on each system through programmed rules and send commands to another system to react to these events.
The Integration Server software enables communication between normally incompatible systems such as video switchers, POS, fire/alarm, access control, and HVAC. It supports three communication methods: up to 16 RS‑232 COM ports, a National Instruments PC‑DIO‑24 digital I/O card, and direct connection to Allegiant switchers via LTC 8059 or LTC 8850 software.

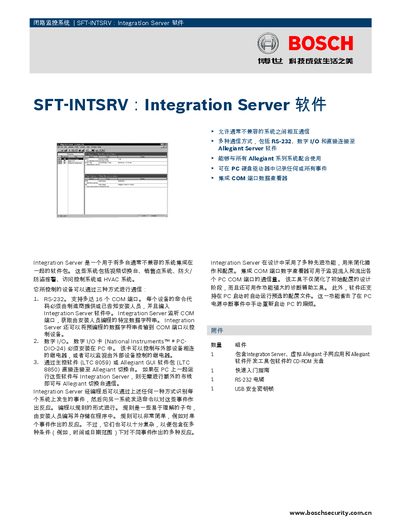

The package includes a CD with the software, a quick‑start guide, an RS‑232 cable, and a USB security key. Minimum system requirements are a Pentium® 120 MHz CPU, Windows 98 SE/ME (8 MB RAM) or Windows 2000/XP (16 MB RAM), 250 MB free disk space, a CD‑ROM drive, and at least one USB and one serial port. This manual is written in Chinese.
| Supported Operating Systems | Windows 98 SE, Windows ME, Windows 2000 (SP3+), Windows XP Professional |
|---|---|
| Minimum CPU | Pentium® 120 MHz |
| Minimum RAM | 8 MB (Win 98/ME) / 16 MB (Win 2000/XP) |
| Hard Disk Space | 250 MB free |
| Supported COM Ports | Up to 16 COM ports |
| USB Port Requirement | At least one USB port |
The software supports up to 16 COM ports for device communication.
The National Instruments PC‑DIO‑24 digital I/O card is required.
