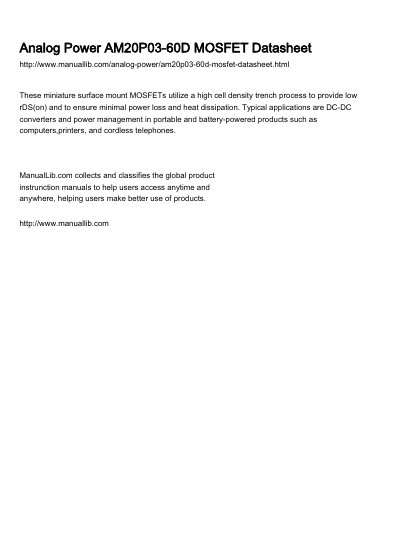

These miniature surface mount MOSFETs utilize a high cell density trench process to provide low rDS(on) and to ensure minimal power loss and heat dissipation. Typical applications are DC-DC converters and power management in portable and battery-powered products such as computers,printers, and cordless telephones.
The Analog Power AM20P03-60D is a P-Channel 32-V (D-S) MOSFET designed with a high cell density trench process. This technology ensures low on-resistance (rDS(on)) and minimal power loss, making it suitable for DC-DC converters and power management in portable and battery-powered products like computers, printers, and cordless telephones. The device features a low thermal impedance copper leadframe in a DPAK package to save board space and offers fast switching speed.
| Drain-Source Voltage | -32 V |
|---|---|
| Operating Junction Temperature | -55 to 175 °C |
| Package Type | DPAK |
The maximum drain-source voltage is -32 V.
The maximum power dissipation is 50 W.
The operating junction and storage temperature range is -55 to 175 °C.
