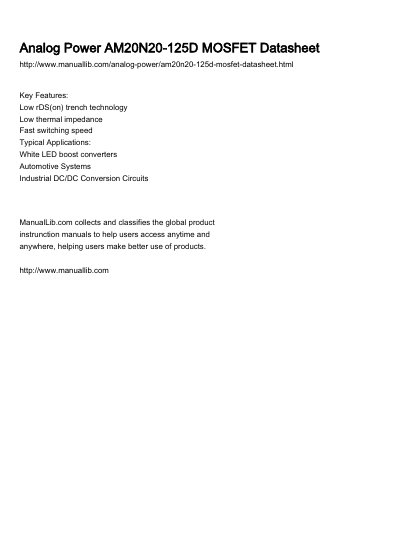

Key Features: Low rDS(on) trench technology Low thermal impedance Fast switching speed Typical Applications: White LED boost converters Automotive Systems Industrial DC/DC Conversion Circuits
The document is a preliminary datasheet for the Analog Power AM20N20-125D, an N-channel 200-V (D-S) MOSFET. It highlights key features such as low thermal impedance and fast switching speed, making it suitable for white LED boost converters, automotive systems, and industrial DC/DC conversion circuits.
| Drain-Source Voltage | 200 V |
|---|---|
| Continuous Drain Current (Tc=25°C) | 12 A |
| Pulsed Drain Current | 50 A |
| Power Dissipation (Tc=25°C) | 50 W |
| Operating Junction Temperature Range | -55 to +175 °C |
| On-State Drain Current (Typical) | 24 A |
| Drain-Source On-Resistance (Typical) | 300 mΩ |
It is designed for white LED boost converters, automotive systems, and industrial DC/DC conversion circuits.
The operating junction temperature range extends up to +175 °C.
