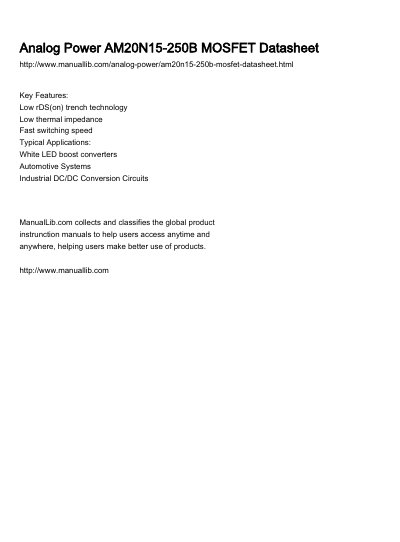

Key Features: Low rDS(on) trench technology Low thermal impedance Fast switching speed Typical Applications: White LED boost converters Automotive Systems Industrial DC/DC Conversion Circuits
The document is a preliminary datasheet for the Analog Power AM20N15-250B, an N-channel 150-V (D-S) MOSFET. It highlights key features such as low rDS(on) trench technology, low thermal impedance, and fast switching speed. Typical applications listed include white LED boost converters, automotive systems, and industrial DC/DC conversion circuits.
| Drain-Source Voltage (VDS) | 150 V |
|---|---|
| Continuous Drain Current (ID) | 21 A |
| Power Dissipation (PD) | 300 W |
| Operating Junction Temperature Range | -55 to 150 °C |
The maximum continuous drain current is 21 A when the temperature is 25°C.
The maximum power dissipation is 300 W at a temperature of 25°C.
The maximum junction-to-ambient thermal resistance is 62.5 °C/W.
