Key Features: Low rDS(on) trench technology Low thermal impedance Fast switching speed Typical Applications: White LED boost converters Automotive Systems Industrial DC/DC Conversion Circuits

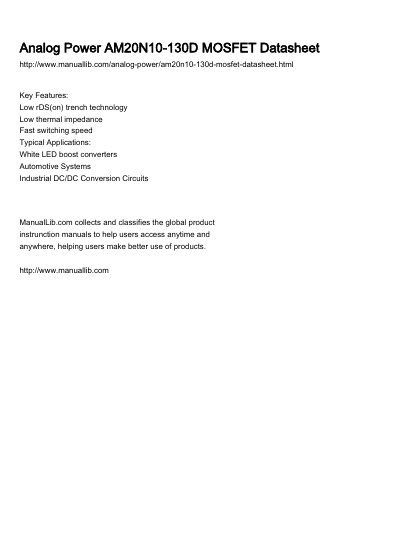

This document is a datasheet for the Analog Power AM20N10-130D, an N-Channel 100-V MOSFET featuring low rDS(on) trench technology and fast switching speed. It is designed for applications such as white LED boost converters, automotive systems, and industrial DC/DC conversion circuits.
The datasheet provides absolute maximum ratings, electrical characteristics including on-state drain current and gate charge, and typical electrical characteristics graphs. It also includes thermal resistance ratings and package information for the component.
| Drain-Source Voltage | 100 V |
|---|---|
| Operating Junction Temperature | -55 to 175 °C |
| On-Resistance @ VGS=10V | 130 mΩ |
| On-Resistance @ VGS=4.5V | 160 mΩ |
