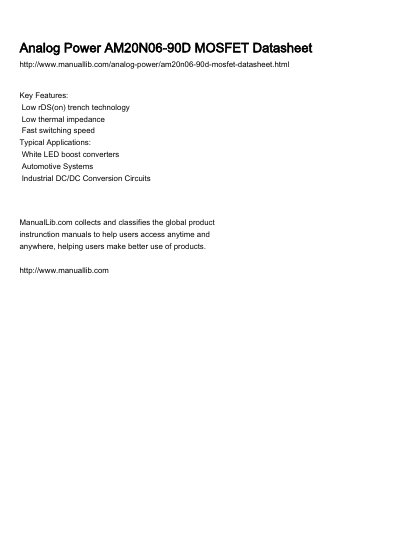

Key Features: Low rDS(on) trench technology Low thermal impedance Fast switching speed Typical Applications: White LED boost converters Automotive Systems Industrial DC/DC Conversion Circuits
This document is a preliminary datasheet for the Analog Power AM20N06-90D, an N-channel 60-V (D-S) MOSFET. Key features include low rDS(on) trench technology, low thermal impedance, and fast switching speed. The device is designed for surface mounting on a 1" x 1" FR4 board.
| Drain-Source Voltage (VDS) | 60 V |
|---|---|
| Operating Junction and Storage Temperature Range | -55 to 150 °C |
The maximum drain-source voltage rating is 60 V.
