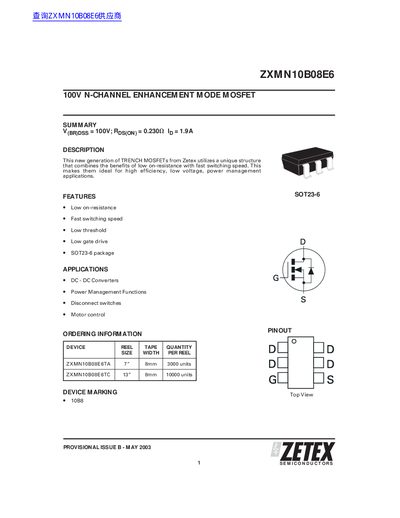

Zetex ZXMN10B08E6 100V N-Channel Enhancement Mode MOSFET Datasheet
This document is a provisional datasheet for the ZXMN10B08E6, a 100V N-Channel Enhancement Mode MOSFET designed for high-efficiency power management applications. The device features a TRENCH MOSFET structure with low on-resistance and fast switching speed, available in the SOT23-6 package.
Read onlineZetex ZXMN10B08E6 specifications
| Drain-Source Voltage | 100 V |
|---|---|
| Continuous Drain Current (Ta=25°C) | 1.9 A |
| Power Dissipation (Ta=25°C) | 11 W |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | SOT23-6 |
| Static Drain-Source On-State Resistance | 0.230 Ohm |
Source: Zetex ZXMN10B08E6 100V N-Channel Enhancement Mode MOSFET Datasheet
All Zetex ZXMN10B08E6 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain-source voltage?
The maximum drain-source voltage is 100V.
From: Zetex ZXMN10B08E6 100V N-Channel Enhancement Mode MOSFET Datasheet
What is the continuous drain current at 25°C?
The continuous drain current is 1.9A when Vgs=10V and Ta=25°C.
From: Zetex ZXMN10B08E6 100V N-Channel Enhancement Mode MOSFET Datasheet
What is the maximum drain‑source voltage for the ZXMN10B08E6?
The device is rated for a maximum drain‑source voltage of 100 V.
What is the typical on‑resistance of this MOSFET?
The typical on‑resistance is 0.230 Ω.
