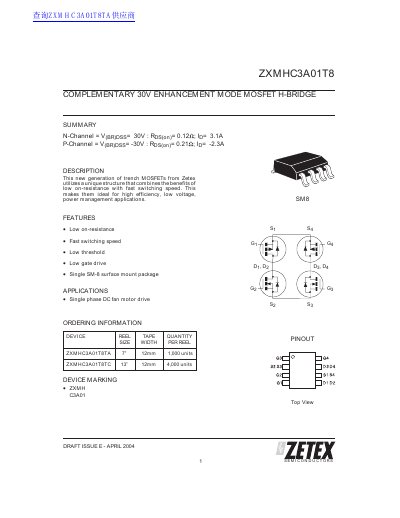

Zetex ZXMHC3A01T8 Complementary 30V Enhancement Mode MOSFET H-Bridge Datasheet
The ZXMHC3A01T8 is a complementary pair of N-channel and P-channel trench MOSFETs designed for high efficiency, low voltage power management applications. The device combines low on-resistance with fast switching speed and is available in a single SM-8 surface mount package. It is specifically intended for applications such as single phase DC fan motor drive.
Read onlineAll Zetex ZXMHC3A01T8 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature?
The maximum junction temperature is 150 °C.
From: Zetex ZXMHC3A01T8 Complementary 30V Enhancement Mode MOSFET H-Bridge Datasheet
What is the operating and storage temperature range?
The device operates and stores within a temperature range of -55 to +150 °C.
From: Zetex ZXMHC3A01T8 Complementary 30V Enhancement Mode MOSFET H-Bridge Datasheet
What is the maximum operating and storage temperature range for this component?
The device can operate and be stored in a temperature range from -55 to +150 °C.
From: Zetex ZXMH C3A01T8 Complementary MOSFET H-Bridge Datasheet
What is the maximum power dissipation rating for this MOSFET at a junction temperature of 25°C?
The N-channel version dissipates up to 1.3 W, and the P-channel version dissipates up to 1.7 W.
From: Zetex ZXMH C3A01T8 Complementary MOSFET H-Bridge Datasheet
