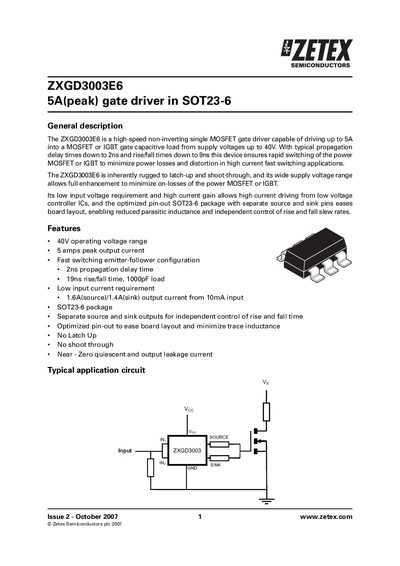

ZETEX ZXGD3003E6 5A(peak) gate driver in SOT23-6
The ZXGD3003E6 is a high‑speed non‑inverting single MOSFET gate driver capable of delivering up to 5 A peak output current from supply voltages up to 40 V. It features a propagation delay of about 2 ns and rise/fall times as low as 9‑19 ns, providing rapid switching for power MOSFET or IGBT applications.
Typical applications include synchronous switch‑mode power supplies, motor control circuits, audio power stages and plasma display panel modules. The device is supplied in a compact SOT‑23‑6 package with separate source and sink pins for independent control of rise and fall slew rates.
Zetex SOT23-6 specifications
| Operating voltage range | 40 V |
|---|---|
| Peak output current | 5 A |
| Propagation delay | 2 ns |
| Rise/fall time (typical load) | 19 ns |
