Key facts
- Brand
- Zetex
- Model
- ZXTN2010G
- Industry
- Industrial
- Documents
- 3
- Languages
- EN
- Last added
- 2012-06-12
Start here

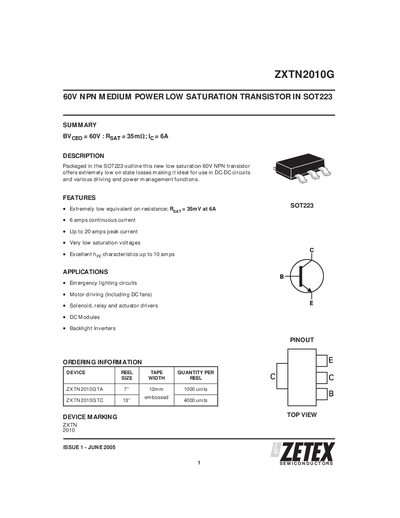

ZETEX ZXTN2010G 60V NPN MEDIUM POWER LOW SATURATION TRANSISTOR IN SOT223 handbook
The Zetex ZXTN2010G is a 60V NPN medium power transistor packaged in the SOT223 outline. It features extremely low on-state losses, making it ideal for use in DC-DC circuits and various driving and power management functions. Key features include an equivalent on-resistance of 35mV at 6A and the ability to handle up to 20 amps peak current.
The document provides absolute maximum ratings, electrical characteristics, typical characteristics graphs, and package outline details. It specifies applications such as emergency lighting circuits, motor driving, and solenoid drivers. Ordering information is provided for tape and reel quantities.
Zetex ZXTN2010G specifications
| Collector-emitter voltage | 60 V |
|---|---|
| Continuous collector current | 6 A |
| Peak pulse current | 20 A |
| Equivalent on-resistance | 35mV at 6A |
| Package type | SOT223 |
| Operating temperature range | -55 to +150 °C |
Source: ZETEX ZXTN2010G 60V NPN MEDIUM POWER LOW SATURATION TRANSISTOR IN SOT223 handbook
All Zetex ZXTN2010G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications of the ZXTN2010G?
It is suitable for emergency lighting circuits, motor driving (including DC fans), solenoid and relay drivers, and DC modules.
From: ZETEX ZXTN2010G 60V NPN MEDIUM POWER LOW SATURATION TRANSISTOR IN SOT223 handbook
What is the maximum collector-emitter voltage?
The maximum collector-emitter voltage is 60V.
From: ZETEX ZXTN2010G 60V NPN MEDIUM POWER LOW SATURATION TRANSISTOR IN SOT223 handbook
What is the maximum continuous collector current?
The maximum continuous collector current is 6 amps.
What is the maximum continuous collector current for this transistor?
The device supports up to 6 amps of continuous current.
What is the maximum collector‑emitter voltage for the ZXTN2010G?
The device is rated for a maximum collector‑emitter voltage of 60 V.
From: Zetex ZXTN2010G 60V NPN Medium Power Low Saturation Transistor Datasheet
What continuous collector current can the ZXTN2010G handle?
It can carry up to 6 A continuous collector current.
From: Zetex ZXTN2010G 60V NPN Medium Power Low Saturation Transistor Datasheet
