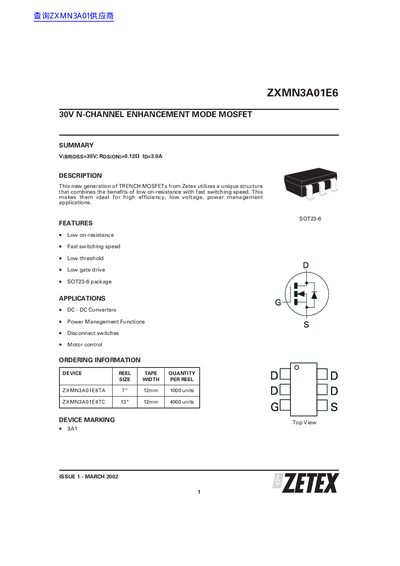

Zetex ZXMN3A01E6 N-Channel MOSFET Datasheet
Datasheet 7 pages · 1.1 MB · EN
The document describes the ZXMN3A01E6, a TRENCH MOSFET designed for high efficiency in low voltage power management applications such as DC-DC converters and motor control. Key features include a low on-resistance of 0.12 ohms at ID=3.0A and fast switching speeds.
Read onlineZetex ZXMN3A01E6 specifications
| Drain-Source Voltage (V DSS) | 30 V |
|---|---|
| Static Drain-Source On-State Resistance | 0.12 ℧ |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | SOT23-6 |
All Zetex ZXMN3A01E6 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical applications for this MOSFET?
It is suitable for DC-DC converters, power management functions, disconnect switches, and motor control.
What is the maximum junction temperature?
The operating and storage temperature range extends up to +150 °C.
What is the maximum drain‑source voltage rating?
The device is rated for a maximum drain‑source voltage of 30 V.
What is the on‑resistance of the ZXMN3A01E6?
The static on‑resistance is 0.106 Ω.
