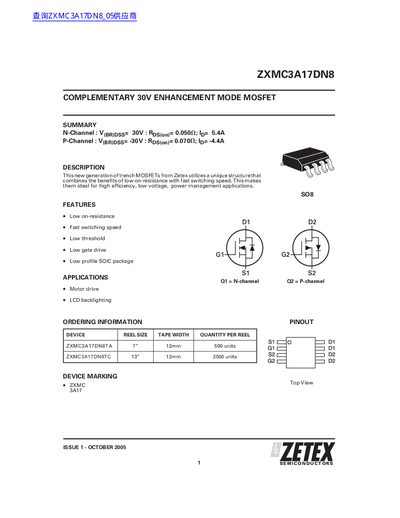

Zetex ZXMC3A17DN8 Complementary 30V Enhancement Mode MOSFET Datasheet
The ZXMC3A17DN8 is a complementary pair of N-channel and P-channel enhancement mode MOSFETs from Zetex. These devices utilize a unique trench structure to combine low on-resistance with fast switching speed, making them ideal for high efficiency power management applications such as motor drives and LCD backlighting.
The document provides comprehensive electrical characteristics, absolute maximum ratings, thermal resistance data, and typical performance curves for both the N-channel and P-channel variants. It also includes ordering information for different reel sizes and package dimensions conforming to JEDEC MS-012AA.
Zetex ZXMC3A17DN8 specifications
| Drain-Source Voltage | 30 V |
|---|---|
| Operating Temperature Range | -55 to +150 °C |
| Package Type | SO-8 |
Source: Zetex ZXMC3A17DN8 Complementary 30V Enhancement Mode MOSFET Datasheet
All Zetex ZXMC3A17DN8 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the main applications for this MOSFET?
The device is ideal for motor drive and LCD backlighting applications.
From: Zetex ZXMC3A17DN8 Complementary 30V Enhancement Mode MOSFET Datasheet
Is the ZXMC3A17DN8 available in different reel sizes?
Yes, it is available in 500 units per reel (TA) and 2500 units per reel (TC).
From: Zetex ZXMC3A17DN8 Complementary 30V Enhancement Mode MOSFET Datasheet
What are the applications for the ZXMC3A17DN8?
The device is ideal for motor drive and LCD backlighting applications.
From: Zetex ZXMC3A17DN8 Complementary 30V Enhancement Mode MOSFET Datasheet
What is the typical on-resistance for the N-channel device?
The typical static drain-source on-state resistance is 0.050 ohms.
From: Zetex ZXMC3A17DN8 Complementary 30V Enhancement Mode MOSFET Datasheet
