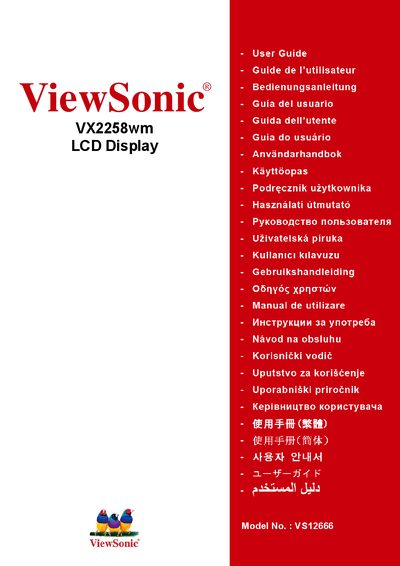

ViewSonic VX2258wm LCD Display User Manual
This manual covers everything you need to set up and operate the ViewSonic VX2258wm widescreen LCD monitor, including safety warnings, quick start, wall‑mount installation, resolution and menu configuration, and troubleshooting. It also contains regulatory compliance information, environmental disposal guidance, and warranty terms.
The guide provides detailed technical specifications such as screen size, native resolution, power consumption, input signal types, and operating environment limits, helping users achieve optimal display performance and maintain the unit safely.
ViewSonic VX2258WM specifications
| Screen size (viewable) | 21.5" diagonal |
|---|---|
| Resolution | 1920x1080 (WUXGA) |
| Contrast ratio | 1000:1 static, 100,000:1 dynamic |
| Response time | 5 ms (typ) |
| Brightness | 200 cd/m² (typ) |
| Power consumption (typical) | 28 W |
| Power consumption (Eco‑mode) | 23 W |
| Audio speakers | 2 × 2 W with SRS Premium Sound |
| Dimensions with stand | 20.1" × 16.4" × 10.4" (W × H × D) |
| Weight with stand | 13.6 lb (6.2 kg) |
Source: ViewSonic VX2258wm 22" (21.5" VIEWABLE) MULTI-TOUCH LCD Manual
All ViewSonic VX2258WM documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What operating system is required for touch functionality?
The monitor requires Microsoft Windows 7 Home Premium or a later edition to enable touch features.
From: ViewSonic VX2258wm 22" (21.5" VIEWABLE) MULTI-TOUCH LCD Manual
What is the power consumption in Eco‑mode?
In Eco‑mode the monitor consumes 23 W.
From: ViewSonic VX2258wm 22" (21.5" VIEWABLE) MULTI-TOUCH LCD Manual
What is the recommended resolution and refresh rate?
The optimal setting is 1920 × 1080 at 60 Hz; other supported resolutions are listed in the specifications.
