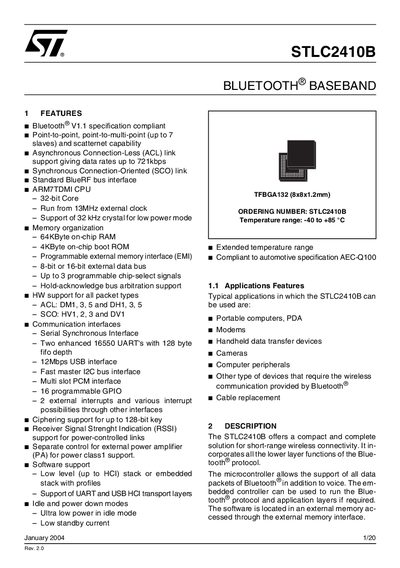

STMicroelectronics STLC2410B Bluetooth Baseband Datasheet
The STLC2410B is a compact solution for short-range wireless connectivity that incorporates all lower layer functions of the Bluetooth protocol. It includes an embedded ARM7TDMI 32-bit core running from a 13MHz external clock, along with 64KByte on-chip RAM and 4KByte boot ROM.
The device supports various communication interfaces including Serial Synchronous Interface, two enhanced 16550 UARTs, a 12Mbps USB interface, and Fast master I2C. It offers hardware support for all packet types, ciphering up to 128-bit keys, and separate control for an external power amplifier.
STMicroelectronics STLC2410B specifications
| Bluetooth Specification Compliance | v1.1 specification compliant |
|---|---|
| Data Rate (ACL) | up to 721kbps |
| CPU Core | ARM7TDMI CPU |
| External Clock Frequency | 13MHz |
| On-chip RAM Size | 64KByte |
| On-chip Boot ROM Size | 4KByte |
| Operating Temperature Range | -40 to +85 °C |
| Package Type | TFBGA132 (8x8x1.2mm) |
Source: STMicroelectronics STLC2410B Bluetooth Baseband Datasheet
All STMicroelectronics STLC2410B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate for ACL links?
The device supports asynchronous connection-less link support giving data rates up to 721kbps.
From: STMicroelectronics STLC2410B Bluetooth Baseband Datasheet
What is the maximum number of slaves supported?
The chip supports point-to-multi-point connectivity with up to 7 slaves.
From: STMicroelectronics STLC2410B Bluetooth Baseband Datasheet
What is the maximum number of slaves supported?
The device supports point-to-multi-point connections with up to 7 slaves.
From: STMicroelectronics STLC2410B Bluetooth Baseband Datasheet
Does it support power-controlled links?
Yes, the chip includes Receiver Signal Strenght Indication (RSSI) support for power-controlled links.
From: STMicroelectronics STLC2410B Bluetooth Baseband Datasheet
