STLC2410B is a Bluetooth module produced by STMicroelectronics. The module supports Bluetooth V1.1 specification and supports point-to-point, point-to-multi-point (up to 7 slave nodes) and scatternet capability.

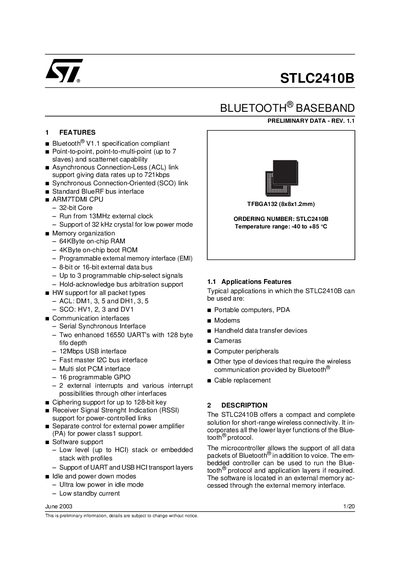

The STLC2410B is a Bluetooth® baseband integrated circuit compliant with the Bluetooth® V1.1 specification. It includes an ARM7TDMI 32-bit core running from a 13MHz external clock and supports up to 64KByte of on-chip RAM. The device facilitates point-to-point, point-to-multi-point, and scatternet capabilities with data rates up to 721kbps for ACL links.
| Bluetooth Specification Version | V1.1 |
|---|---|
| Maximum Data Rate (ACL) | 721kbps |
| CPU Core Type | ARM7TDMI |
| External Clock Frequency | 13MHz |
| On-chip RAM Size | 64KByte |
| Operating Temperature Range | -40 to +85 °C |
| Supply Voltage (Digital Core) | 1.55V to 1.95V |
The device supports point-to-multi-point connections with up to 7 slaves.
Yes, the chip includes Receiver Signal Strenght Indication (RSSI) support for power-controlled links.
Communication interfaces include Serial Synchronous Interface, enhanced 16550 UARTs, a 12Mbps USB interface, and Fast master I2C bus.
