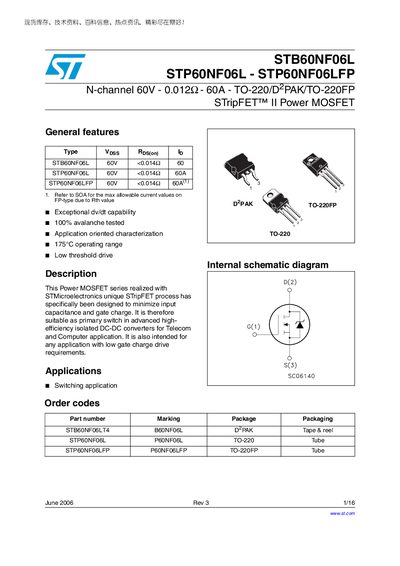

ST STB60NF06L STP60NF06L - STP60NF06LFP Manual
The STB60NFO6L, STP60NFO6L and STP60NFO6LFP are N‑channel 60 V Power MOSFETs realized with STMicroelectronics' STripFET™ process. They feature low input capacitance and gate charge, making them suitable as primary switches in high‑efficiency isolated DC‑DC converters for telecom and computer applications.
The devices are offered in D‑PAK, TO‑220 and TO‑220FP packages. Detailed electrical ratings, thermal data, characteristic curves and packaging dimensions are provided, along with a revision history and legal notices.
STMicroelectronics STB60NF06L specifications
| Drain‑source voltage (Vds) | 60 V |
|---|---|
| Drain‑gate voltage (Vdg) | 60 V |
| Continuous drain current at 25 °C (Id) | 60 A |
| Continuous drain current at 100 °C (Id) | 42 A |
| Pulsed drain current (Id,pulse) | 240 A |
| Total dissipation at 25 °C (Pd) | 110 W |
| Thermal resistance junction‑case (RθJC) | 1.36 °C/W |
| Thermal resistance junction‑ambient (RθJA) | 62.5 °C/W |
| On‑resistance (Rds(on)) | 0.012 Ω |
| Total gate charge (Qg) | 66 nC |
| Input capacitance (Ciss) | 2000 pF |
| Package type | D‑PAK, TO‑220, TO‑220FP |
All STMicroelectronics STB60NF06L documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current at 25 °C for these MOSFETs?
The maximum continuous drain current at 25 °C is 60 A.
Which package options are available for the STB60NFO6L series?
The devices are offered in D‑PAK, TO‑220 and TO‑220FP packages.
What is the maximum continuous drain current at 25 °C?
The maximum continuous drain current at 25 °C is 60 A.
What package is the STP60NFO6LFP offered in?
The STP60NFO6LFP is supplied in a TO‑220FP tube package.
What is the maximum drain‑source voltage for these MOSFETs?
The devices are rated for a maximum drain‑source voltage of 60 V.
Which package options are available for the STB60NFO6L series?
The MOSFETs are offered in TO‑220, TO‑220FP and DPAK packages.
