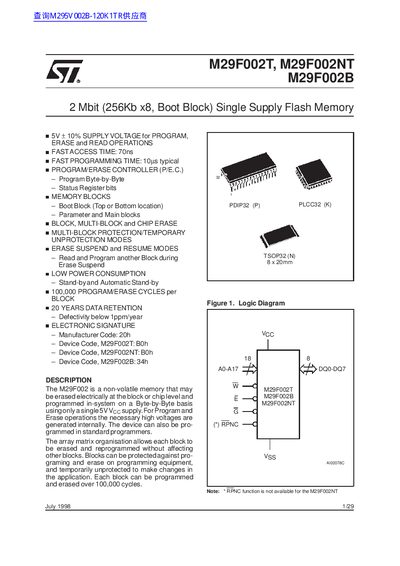

M29F002T, M29F002B, M29F002NT is a 2 Mbit (256Kb x8, Boot Block) single supply flash memory with a 5V ± 10% supply voltage. Read and write time is 70ns and 10µs respectively. It supports erase, protection, temporary unprotection, freeze and resume. It supports 100,000 erase cycles and data can be retained for 20 years
The M29F002 series are 2 Mbit (256 Kb × 8) single‑supply flash memory devices with a boot block architecture. They support byte‑by‑byte programming, block or chip erase, and feature a built‑in program/erase controller that handles timing and verification automatically.
The devices operate from a 5 V ±10 % supply (range –0.6 V to 7 V), work over –40 °C to 125 °C, and are offered in PLCC32, PDIP32 and TSOP32 packages. They provide 100 000 program/erase cycles per block, 20‑year data retention, and fast access (70 ns) and programming (10 µs typical) times.
| Memory density | 2 Mbit (256 Kb × 8) |
|---|---|
| Supply voltage (typical) | 5 V ±10 % |
| Supply voltage range | –0.6 V to 7 V |
| Fast programming time | 10 µs typical |
| Program/Erase cycles per block | 100 000 |
| Data retention | 20 years |
| Operating temperature range | –40 °C to 125 °C |
| Package types | PLCC32, PDIP32, TSOP32 (8 × 20 mm) |
Each block can be programmed and erased up to 100 000 times.
The devices retain data for 20 years.
They are offered in PLCC32, PDIP32, and TSOP32 (8 × 20 mm) packages.
