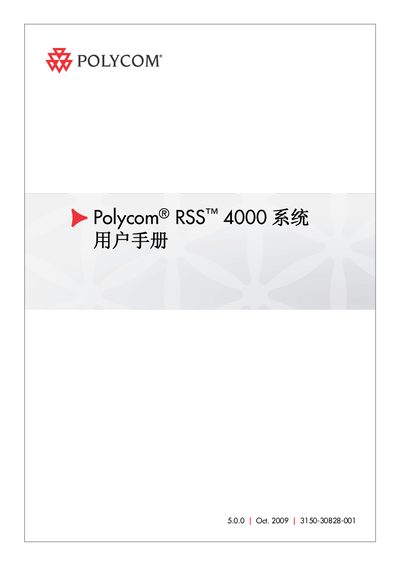

Polycom RSS 4000 System User Manual
This manual guides users and system administrators through the setup, configuration, and daily operation of the Polycom RSS 4000 network server. It covers safety precautions, hardware installation, initial IP address configuration, and web‑based management functions such as recording, playback, and user account control.
The document also details hardware specifications, power requirements, and regulatory compliance, and includes appendices for media tools, command‑line settings, and safety notices. It is intended for use in professional video‑conferencing environments where reliable recording and streaming of H.323 video sessions are required. This manual is written in Chinese.
Polycom RSS 4000 specifications
| Maximum concurrent recordings | 15 meetings |
|---|---|
| Video resolution (recording) | QCIF, CIF, 4CIF, SD, HD, XGA, SVGA, VGA |
| Audio standards | G.711a, G.711u, G.722, G.728, G.722.1, Annex C, Siren14, Siren22 Stereo |
| Recording bitrate | 128 kbps – 4 Mbps |
| Storage | 2×1 TB SATA HDD in RAID‑1 (500 GB media storage) |
| Network interfaces | 2×10/100/1000 Mbps Ethernet |
| Power input | 100‑240 V, 50‑60 Hz, 4‑10 A, 1+1 backup |
| Physical dimensions (2U rack) | 485 mm × 441 mm × 89 mm |
| Weight | 19.5 kg |
| Concurrent streaming sessions | Up to 4 real‑time streams |
| Concurrent data streams (unicast) | 200 |
| Streaming storage capacity | Up to 700 hours at 768 kbps |
| Security features | AES media encryption, TLS/SSL, HTTPS |
Source: Polycom RSS 4000 Recording and Streaming Server Datasheet
All Polycom RSS 4000 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many meetings can the RSS 4000 record at the same time?
It can record up to 15 meetings simultaneously.
From: Polycom RSS 4000 Recording and Streaming Server Datasheet
What type of network connection does the device use?
It provides two 10/100/1000 Mbps Ethernet ports.
From: Polycom RSS 4000 Recording and Streaming Server Datasheet
What is the default IP address of the RSS 4000?
The default IP address is 192.168.1.254.
How many hard drives are installed in the RSS 4000?
The system includes two 500 GB hard drives, configured as a mirrored pair.
How many simultaneous meetings can the RSS 4000 record?
The RSS 4000 can record up to 15 meetings at the same time.
What video resolutions does the RSS 4000 support?
It supports 720p and 1080p video using H.264 encoding.
