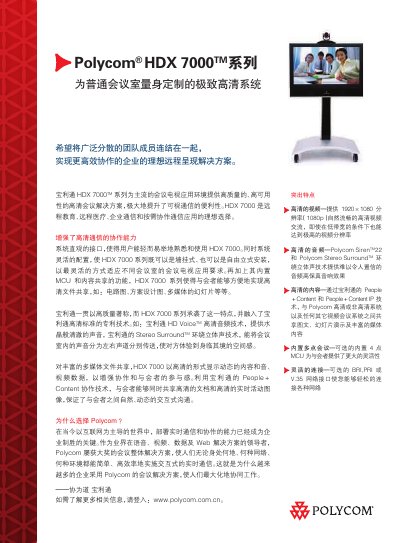

Polycom HDX 7000TM Series Product Manual
The Polycom HDX 7000TM Series is a high‑definition video‑conferencing solution designed for meeting rooms, remote education, tele‑medicine, and enterprise collaboration. It offers intuitive interfaces, flexible mounting options, built‑in MCU, and content‑sharing capabilities to enhance visual communication.
Key features include 1080p video, Polycom StereoSurround™ audio, People+Content sharing, optional built‑in 4‑point MCU, and a range of network interfaces. Detailed technical specifications cover video standards, camera options, audio codecs, power consumption, environmental limits, and physical dimensions. This manual is written in Chinese.
Polycom HDX 7000TM specifications
| Maximum video resolution | 1080p/30fps @ ≥1M |
|---|---|
| Audio technology | Polycom StereoSurround™ |
| Typical power consumption (115 V) | 189 VA @115 V 60 Hz .67 PF |
| Operating temperature range | 0 °C to 40 °C |
| Storage temperature range | -40 °C to 70 °C |
| Physical dimensions (H × W × D) | 352 mm × 129 mm × 279 mm |
| Network ports | 2 × 10/100 Mbps RJ45 |
| Supported video codecs | H.264, H.263++, H.261, H.239 |
| Camera option – EagleEye 720p | 1280 × 720 P CCD, 12× optical zoom, 72° view |
| Camera option – EagleEye 1080p | 1920 × 1080 CMOS, 10× optical zoom, 70° view |
All Polycom HDX 7000TM documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What video resolution does the Polycom HDX 7000 support?
It supports up to 1080p at 30 fps with a minimum bitrate of 1 Mbps.
What are the power requirements for the HDX 7000?
Typical operation consumes 189 VA at 115 V, 60 Hz with a power factor of 0.67 (or 192 VA at 230 V, 60 Hz with 0.66 PF).
What video resolution does the HDX 7000 support?
It supports up to 720p resolution at 30 fps.
How many participants can the built‑in MCU handle?
The optional built‑in MCU can support up to four points.
