The Polycom RSS 4000 records and streams video conferences, supporting up to 15 simultaneous meetings and high‑definition video.

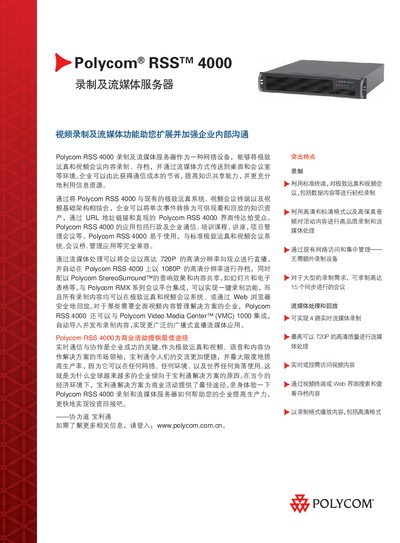

The Polycom RSS 4000 is a network‑based recording and streaming server designed for enterprise video‑conference environments. It captures video, audio and content from standard endpoints, stores them, and delivers live or on‑demand streams to desktops and meeting rooms. Key features include up to 15 concurrent recordings, 720 p real‑time streaming (up to 1080 p archival), H.239 dual‑stream content capture, and integration with Polycom Video Media Center (VMC) 1000 for automated content management. This manual is written in Chinese.
| Maximum concurrent recordings | 15 meetings |
|---|---|
| Video resolution (recording) | QCIF, CIF, 4CIF, SD, HD, XGA, SVGA, VGA |
| Audio standards | G.711a, G.711u, G.722, G.728, G.722.1, Annex C, Siren14, Siren22 Stereo |
| Recording bitrate | 128 kbps – 4 Mbps |
| Storage | 2×1 TB SATA HDD in RAID‑1 (500 GB media storage) |
| Network interfaces | 2×10/100/1000 Mbps Ethernet |
| Power input | 100‑240 V, 50‑60 Hz, 4‑10 A, 1+1 backup |
| Physical dimensions (2U rack) | 485 mm × 441 mm × 89 mm |
| Weight | 19.5 kg |
| Concurrent streaming sessions | Up to 4 real‑time streams |
| Concurrent data streams (unicast) | 200 |
| Streaming storage capacity | Up to 700 hours at 768 kbps |
| Security features | AES media encryption, TLS/SSL, HTTPS |
It can record up to 15 meetings simultaneously.
It provides two 10/100/1000 Mbps Ethernet ports.
