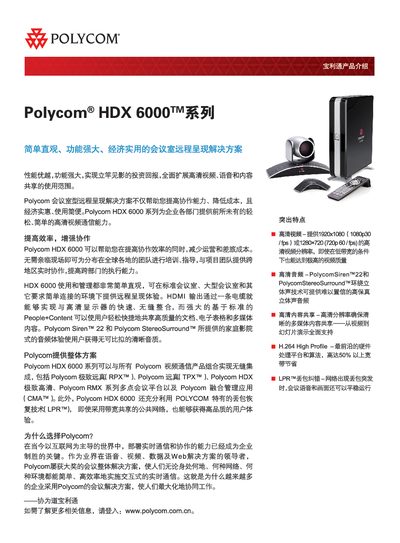

Polycom HDX 6000 Meeting System User Manual
The HDX 6000 series delivers high‑definition video, high‑fidelity audio and easy content sharing for small to large meeting rooms. It supports a range of video standards (H.264, H.263, H.261, H.239) and audio codecs (G.711, G.722, etc.) and includes features such as LPR packet‑loss recovery and People+Content sharing.
Technical specifications include video resolutions up to 1080p 30 fps, multiple audio codec support, power consumption of 189 VA at 115 V, operating temperature from 0 °C to 40 °C, and a compact chassis measuring 352 mm H × 129 mm W × 279 mm D. Contact information for Polycom offices worldwide is also listed. This manual is written in Chinese.
Polycom HDX 6000 specifications
| Video resolution | 720p/30fps |
|---|---|
| Camera sensor | 1280x720p CCD |
| Power consumption | 189VA @ 115V 60 Hz |
| Operating temperature | 0‑40 °C |
| Dimensions (H×W×D) | 13.87" × 5.08" × 11" |
| Weight (codec unit) | 12 lb |
All Polycom HDX 6000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the power specifications for the HDX 6000?
Typical power consumption is 189 VA at 115 V, 60 Hz with a power factor of about 0.67.
What are the operating temperature and humidity ranges?
The unit operates from 0 °C to 40 °C and a humidity range of 10 % to 80 %.
What video resolutions does the Polycom HDX 6000 support?
It supports 720p/30fps at ≥832 Kbps, 4SIF, 4CIF, SIF, CIF, QSIF, and QCIF formats.
Which audio codecs are available on the HDX 6000 series?
The system supports G.711, G.728, G.729A, G.719, and G.722 audio codecs.
Which audio codecs are compatible with the HDX 6000?
The system supports G.711, G.728, G.729A, G.719, G.722, G.722.1 and G.722.1 Annex C.
What are the power requirements for the HDX 6000?
At 115 V it draws 189 VA with a power factor of 0.67; at 230 V it draws 192 VA with a power factor of 0.66.
